GeoSyn maintains a centralized database of log defaults for all log types. Customize settings for track widths, scales, aliases, color fills, and more. These setting apply to new synthetics where log settings aren't already defined in the import defaults file.
The import defaults file generally contains all default settings except those that apply to logs, but when you update the import defaults file with settings from the current synthetic, settings for log types in the current synthetic are also written to it. Log settings in the import defaults file override, but don't overwrite settings in the log defaults database.
When GeoSyn creates a synthetic, it first checks whether display settings for the log upon which the synthetic will be based exist in the current import defaults file. If they do, GeoSyn uses them instead. For details on changing import defaults, see Related topics below.
The log database is the LogInit50.gld file in the GeoSyn Working directory.
To change log defaults:

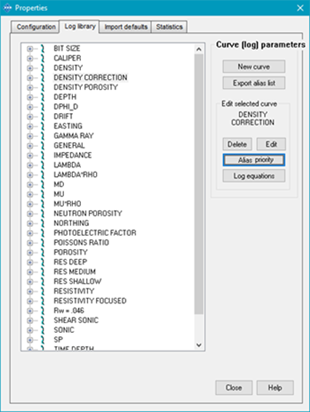

- From the Edit menu, select Default log properties > Log Libraryto open the Properties: Log Library dialog box.
- In the tree display, click the plus sign (+) beside the appropriate node to expand it and view current configuration details.

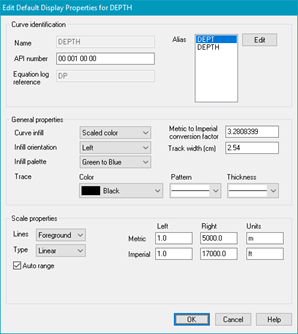

- Click Edit to open the Edit Default Display Properties dialog box.
- Configure the
curve properties then click
OK to return to the Properties: Log Library tab. - Click

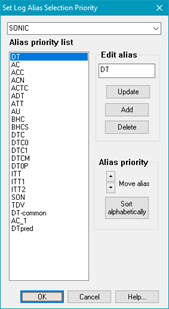

Alias priority to open the Set Log Alias Selection Priority dialog box.
- Configure the default import priority for Alias (Type) of individual logs then click
OK to return to the Properties: Log Definitions tab. - Click Close to return to the main synthetic display. The changes you made are applied to future synthetics providing a different setting doesn't exist in the import defaults file for that synthetic.
