Change seismic display options including which samples to display, how to display them, label text, and more.
To change seismic properties:
1. From the Edit menu, select Seismic properties (
).

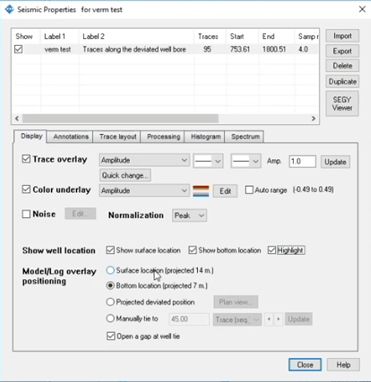

The Seismic Properties: Display
dialog box opens.
2. In the display pane, select the seismic trace(s) for which to configure label and layout properties. SHIFT+CLICK or CTRL+CLICK for multiple selection.
3. Use the tabs to configure trace display properties as follows:
Display, overlay and underlay properties.
Annotations, trace name and label frequency.
Trace Layout, number of traces to display.
Processing, trace processing options including summing raw traces using common offset points.
Histogram, plot density of data.
Spectrum, graphical display of frequencies and their amplitudes.
4. In the main Seismic Properties dialog box, click Close to return to the main synthetic view with the changes applied.
