Launching GeoSyn using PetraSeis

Right-click a well in PetraSeis for which to create a synthetic in GeoSyn. Using PetraSeis, you specify the curves and tops to include in your synthetic. You can also include a seismic line and a directional survey.

GeoSyn projects you launch using PetraSeis can be exported back to PetraSeis from GeoSyn. For details, see Related topics below.

To launch GeoSyn using PetraSeis:

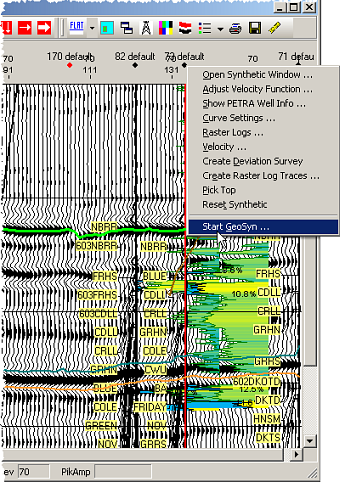

1. Using the PetraSeis application, right-click the well for which to launch GeoSyn and select Start GeoSyn.

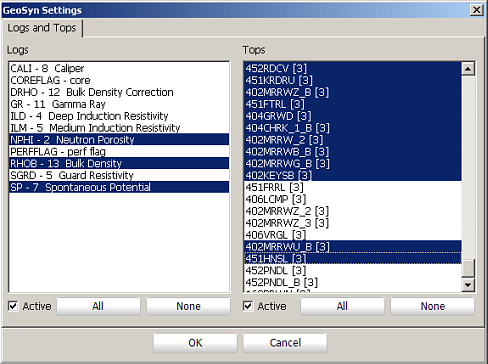

The GeoSyn Settings dialog box opens.

2. Select the desired log(s) and tops to import into GeoSyn, and then click OK.

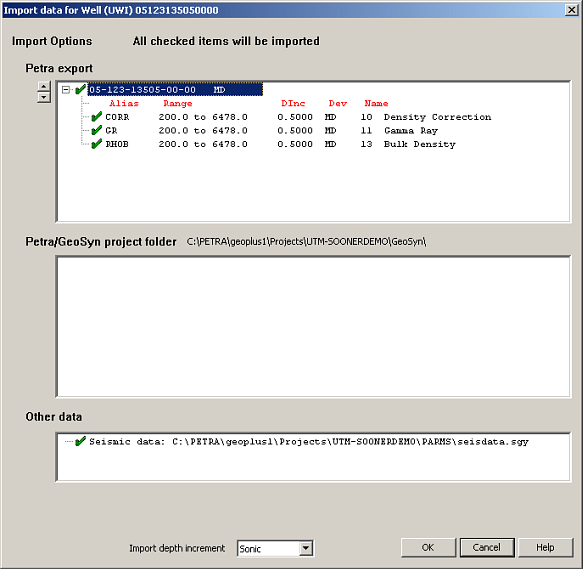

The Import data for Well dialog box opens.

Any data that PetraSeis includes that can be used in GeoSyn appears in this dialog.

3. Verify the import options, select a log from which to use the depth increment, and then click OK.

Depending on whether you're importing a seismic line or a directional survey, either the Set time and range for or the directional survey dialog box opens. For details on importing seismic or directional surveys, see Related topics below.
