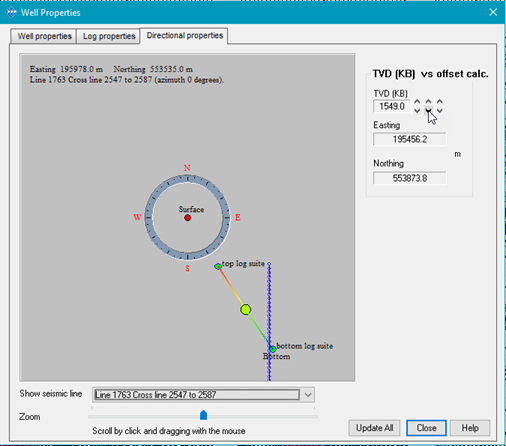

The Directional properties tab provides a view of a selected seismic line relative to the well bore. The view provides the option to select individual traces or none from a drop down list.
The calculated offset between the TVD and the KB is represented by a colored dot along the well bore. The dots color changes according to the depth of the calculated offset.
