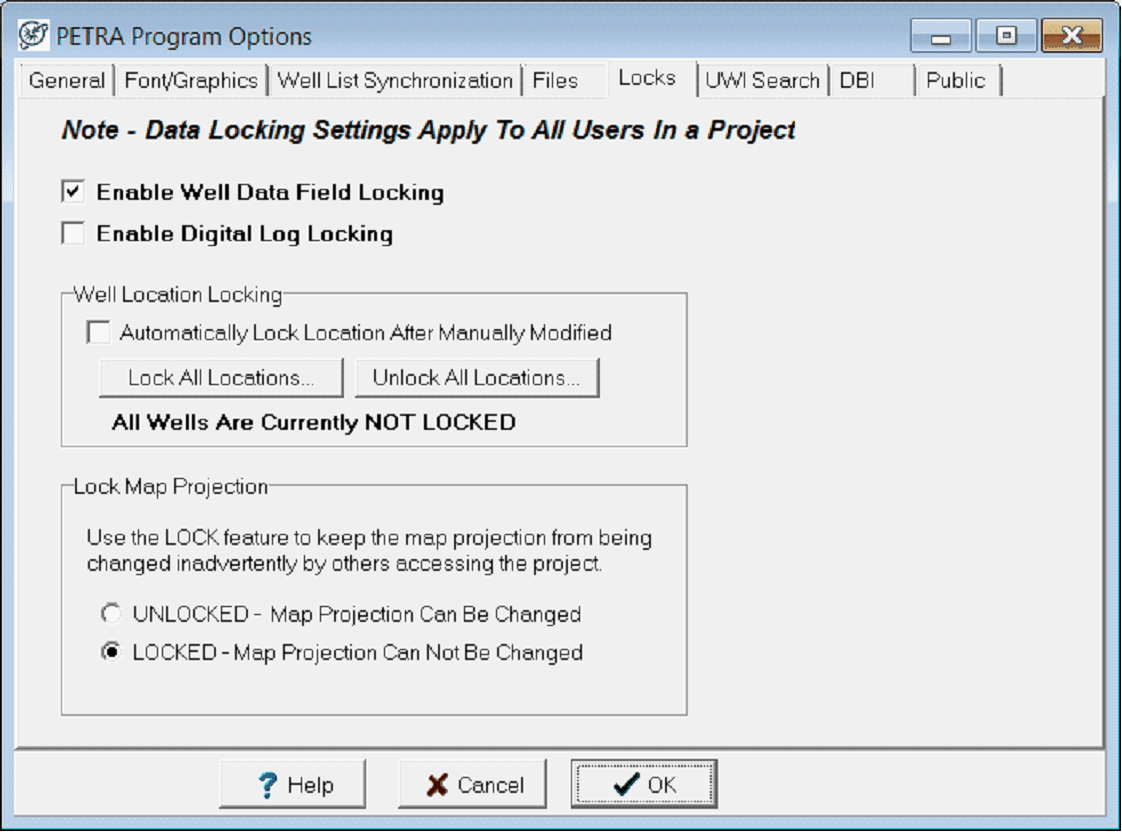

Enable Well Data Field Locking
|
When this option is selected, users can lock specific well data fields. Locked data items cannot be changed until they are unlocked. To lock a zone data item, select the zone or zones and right click to select lock/unlock for this well/all wells.
Alternatively, locking also responds to keyboard commands.
- CTRL + L- Lock item for this well
- CTRL +U - Unlock item for this well
- ALT + L - Lock item for all wells
- ALT + U- Unlock item for all wells
|
|
Enable Digital Log Locking
|
When this option is selected, users can lock specific digital logs. Locked data items cannot be changed until they are unlocked. To lock a digital log item, select the log or logs and right click to select lock/unlock for this well/all wells. Alternatively, locking also responds to keyboard commands.
- CTRL + L - Lock log for this well
- CTRL +U - Unlock log for this well
- ALT + L - Lock log for all wells
- ALT + U Unlock log for all wells
|
|
Well Location Locking
|
Well locations can be locked for all wells or for individual wells. Once a well's location is locked, it can not be changed, either by import or manual edit until the location is unlocked.
|
|
Automatically Lock Location After Manually Modified
|
Automatically locks a well's location after it has been manually edited. This prevents later well location changes due to importing data later.
|
|
Lock All Locations
|
Locks all well locations in the project.
|
|
Unlock All Locations
|
This option unlocks all well locations. Prompts you to unlock all wells or only those wells that were not individually locked.
Yes — Unlock all wells, including wells that were locked with the global "Lock All Locations" button and wells that were manually locked.
No — Unlock wells that were locked with the the global "Lock All Locations" button; wells that were manually locked will remain locked.
|
|
Lock Map Projection
|
Locks the the project's map projection. This prevents a user accidentally changing the projection with the Map Projection Settings tool or by importing a importing a Petra Project File (*.PPF).
|
