Opening shared mode projects

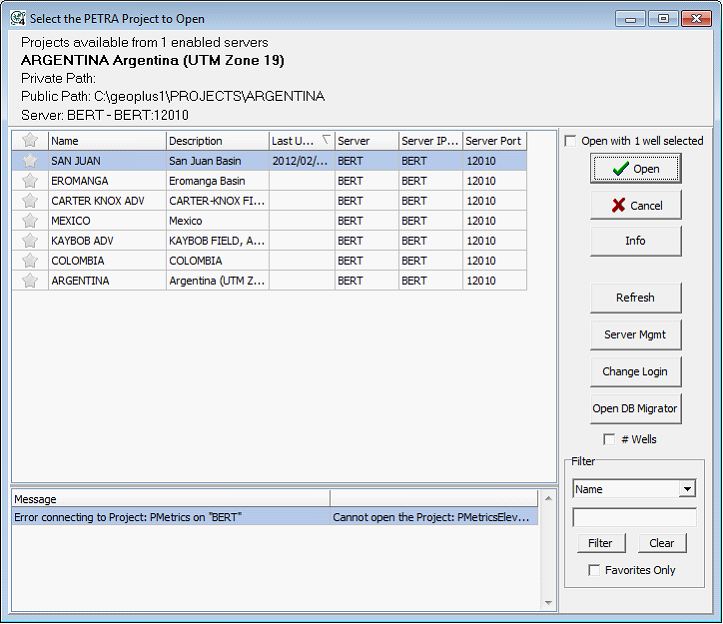

Select the Petra Project to Open window displays all migrated projects on the available servers.  Projects are listed in a spreadsheet with columns for name, description, the last opened date and time, the server name, server IP, and server port.  Selecting the star next to a project name designates a project as a favorite project, making it more visible and easier to pick.

Click to enlarge image

Cancel

Closes the “Select the Petra Project to Open window and returns to the Main Module.

Info

Displays information about the selected project, including map projection, access history, and folder pathways.

Refresh

Refreshes the projects available from the Petra Database Servers.

Server Mgmt

Opens the Petra Server Manager, and is primarily used to add or remove available Petra Database Servers.

Change Login

Changes the username and password used to login to the Petra Database Server.  Different user names may have different access privileges.

Open DB Migrator

Opens the Shared Mode's Project Migration Tool.

# Wells

Adds a column displaying the total well count for each project.

Filter

Filters the available projects.  To set a search criterion, select whether the projects will be filtered by name, description, or server with the dropdown menu.  Next, enter the desired search term and select the “Filter” button.  To remove search criteria, select Clear.

The Favorites Only option only displays projects with a favorites star.
