Frame Property

Frame properties are used to draw lines at the corners of the cube bound by the extents. It can also be used to position semi transparent planes on the sides of the cube.

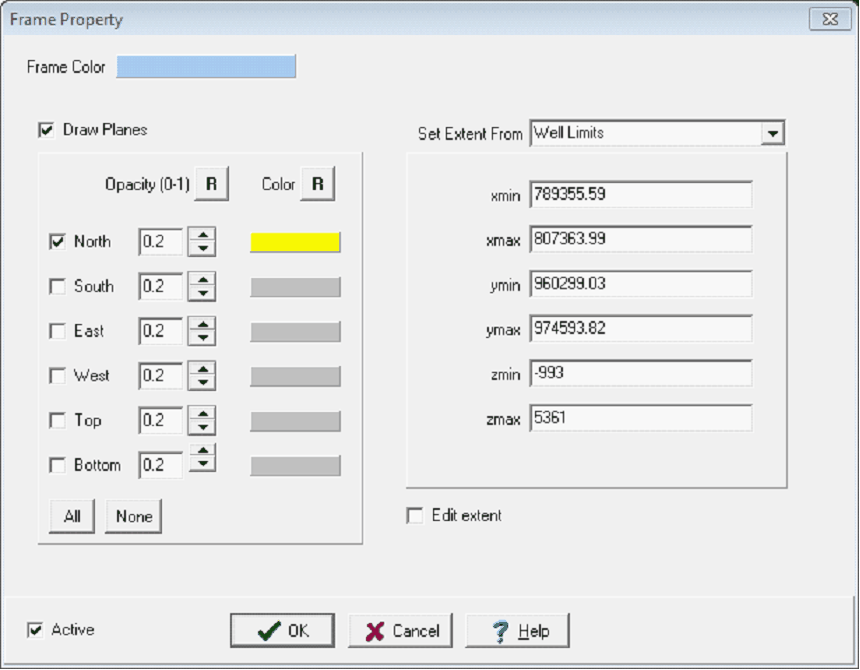

To change frame properties:

3D Visualizer: Display > Frame...
3D Visualizer: CTRL + F

Frame Color	Sets the color for the frame.
Draw Planes	Toggles the frame around the data on the 3DViz Module on/off.
Opacity	Sets the opacity of the frame. Opacity - Resets opacity values to default (0.2) Color - Resets all colors to default color (Gray) North - This option sets the northern color and opacity of the frame's surface. By default, the northern frame is yellow to distinguish it from other frames. South - This option sets the southern color and opacity of the frame's surface. East - This option sets the eastern color and opacity of the frame's surface. West - This option sets the western color and opacity of the frame's surface. Top - This option sets the color and opacity of the bottom of the frame's surface. Bottom - This option sets the color and opacity of the bottom of the frame's surface. Frame Extents The frame extents set the boundaries of the frame.
Set Extent From	This dropdown sets the extents of the frame from either the currently selected well limits, or by the limits of the data currently displayed. xmin - This entry sets the east boundary of the frame. xmax - This entry sets the west boundary of the frame. ymin - This entry sets the north boundary of the frame. ymax - This entry sets the south boundary of the frame. zmin - This entry sets the upper boundary of the frame. zmax - This entry sets the lower boundary of the frame.
