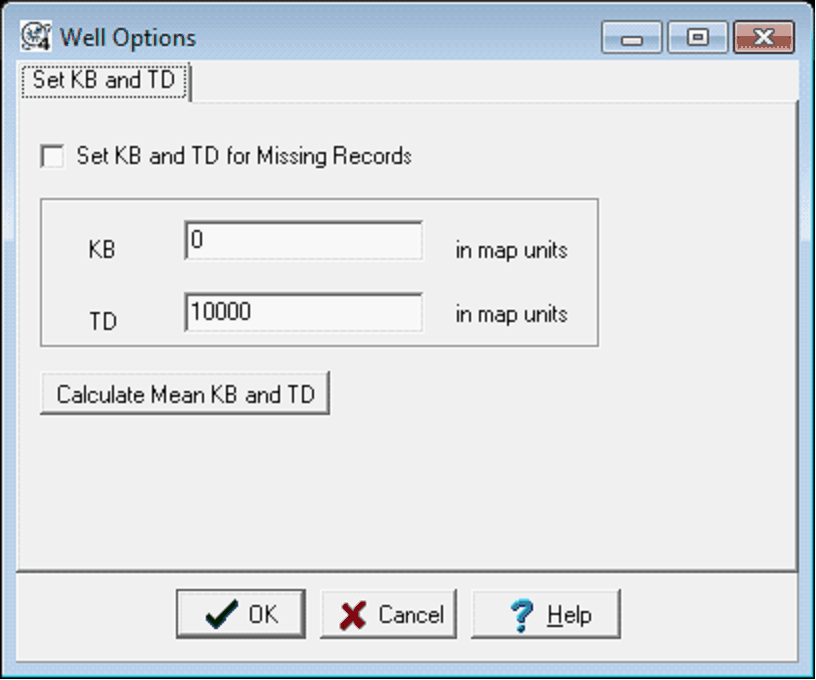

Well Options (Default KB & TD)


3D Viz: Wells>Set KB and TD

The 3DViz module uses a KB (or other well datum) and TD (Total Depth) to position wells inside the module.

 The 3DViz module cannot plot wells that do not have these values.

This tool assigns a default KB and TD for wells missing these values.  A Deviated well will use the deviation survey to calculate a TD.

Set KB and TD for Missing Records

Enables the default KB and TD for wells that are missing them.

KB

Sets the default KB for the wells missing an active datum.  By default, this is set to 0.

TD

Sets the default TD for the wells missing an active TD.  By default, this is set to 10000.

Calculate Means and TD

Calculates the average values for KB and TD for the wells currently loaded in the project.
