Selecting cross section wells

Wells for a cross section be selected from either:

• Cross section module 1 or 2
• Map module

Selecting wells from the cross section module

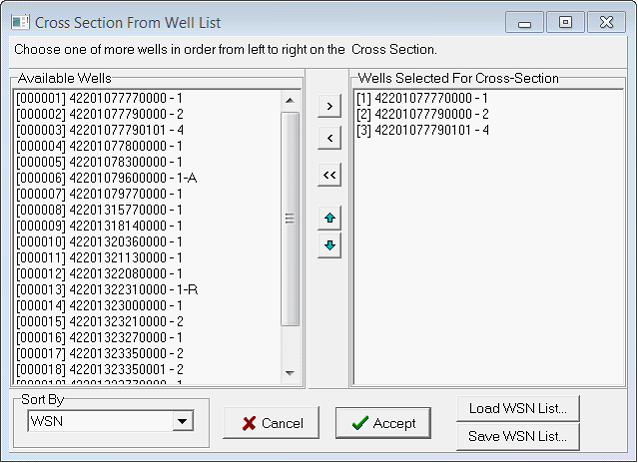

Cross Section: Wells>Select Wells>Wells From A List...

The cross section module allows users to pick wells from a list, the advantage of using the list selection method is that it is an easy way to add, subtract  or re-order wells in an existing cross section.

Selecting wells from the map module

• Map Module: Cross Section > ...
• Cross Section: Wells>Select Wells> Switch to mapping tool...

The map module allows users to graphically pick wells from the map using multiple methods:

• Well to well
• Single well
• Line and corridor
• Line and wells
