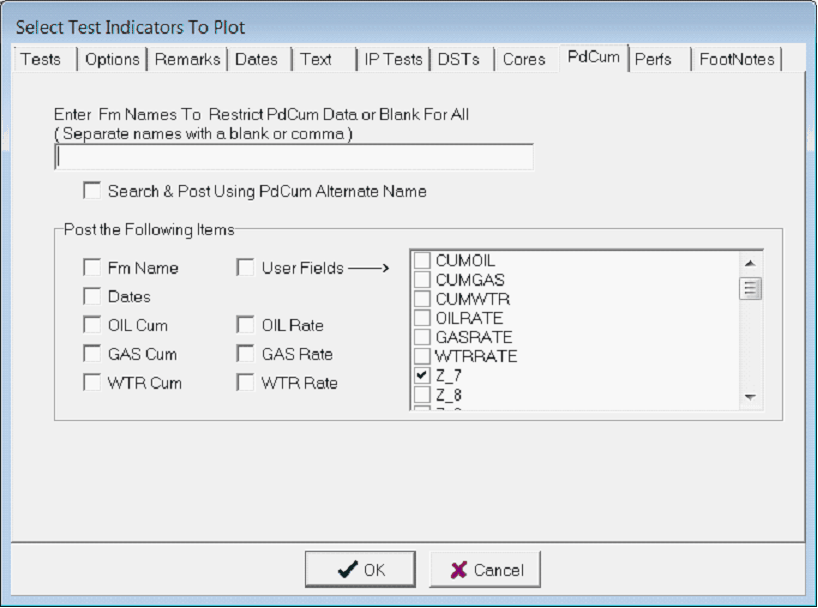

Test Indicators. PdCum tab



The PdCum tab controls how production cums are displayed on the cross section.  This tab is only available when the PD Cum option is selected on the Tests tab.

Enter Fm Names to Restrict PdCum Data or Blank for All

Restricts the pd cums on the cross section to only those with one of the specified "Fm Names" set on the Main Modules's Prod Cums tab.

Post the Following Items

Sets what will plot along with the production cum symbol.  This can include the formation name, dates, oil/gas/water cums and more.  The entry box to the right plots additional fields loaded by the user.
