Zones

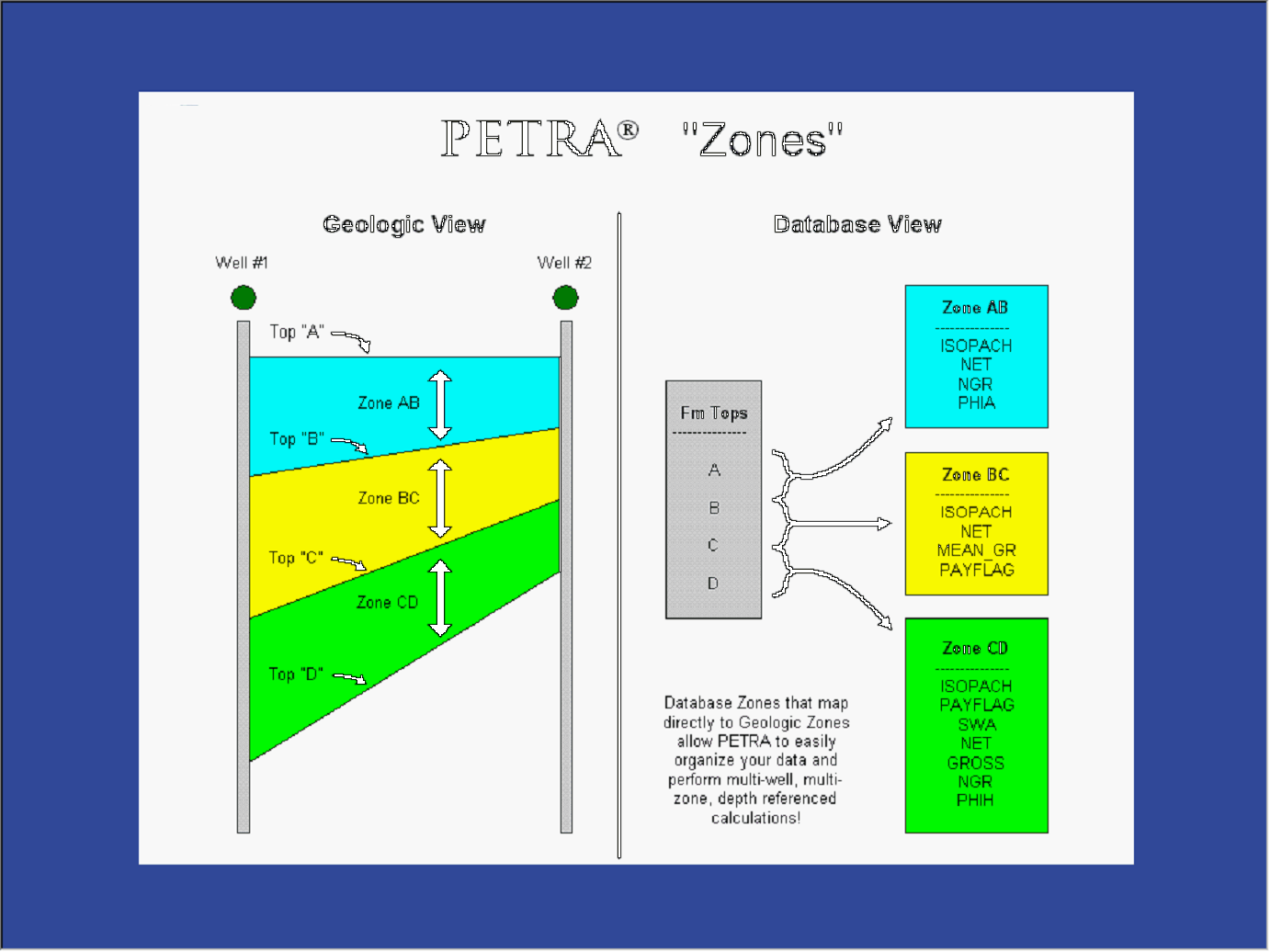

Petra defines a “Zone” as a specific interval in a well that can be defined by a top and a base.  Inside each zone, Petra stores “Data Items” that relate to that zone. In the example below, four tops delineate three zones: Zones AB, BC, and CD. Each of these zones have their own set of data items, including isopachs, net pays, or log measurements.
