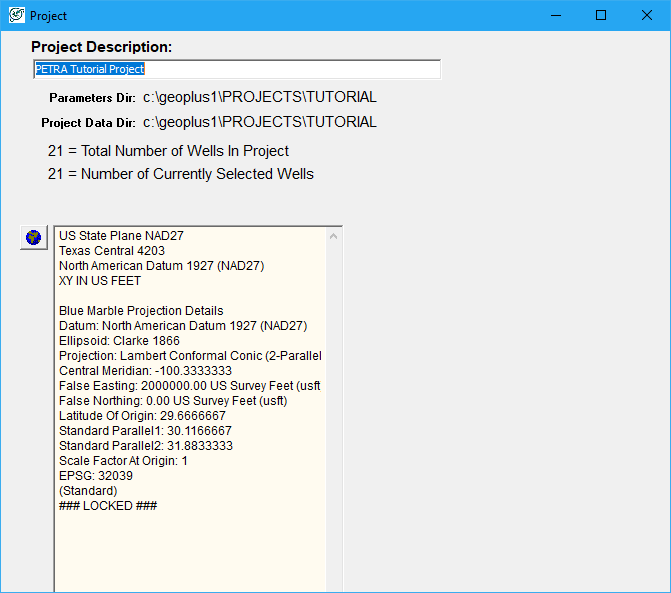

The Project tab displays and controls basic information for the Petra project including; project description, parameters and project data directories, total well count, and map projection.
|
Project Description
|
The project description is used as a label on graphic displays. To modify; type over the current description.
|
|
File Locations
|
·Location of the Parameters directory (private)
·Location of the Project data directory for the project.
|
|
Well Counts
|
·Total number of wells In project
·Number of currently selected wells
|
|
|
Map Projection - Displays summary details of the Petra project's map projection.To change the map projection select the button.
|
|
