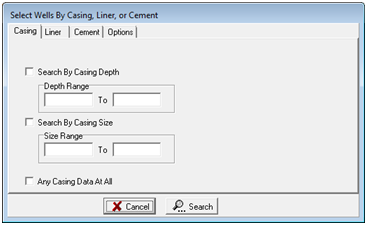

Casing tab

Search By Casing Depth - This option returns wells with any casing inside the set depth range.

Search By Casing Size - This option returns wells with any casing sizes within the range.

Any Casing Data At All - This option returns wells with any loaded casing data, regardless of depth or size.

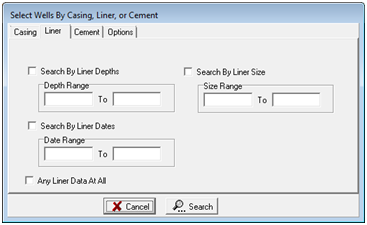

Liner tab

Search By Liner Depth - This option returns wells with any liner inside the set depth range.

Search By Liner Size - This option returns wells with any liner sizes within the range.

Search By Liner Dates - This option returns wells with liner dates between the set range.

Any Liner Data At All - This option returns wells with any loaded liner data, regardless of depth, size, or date.

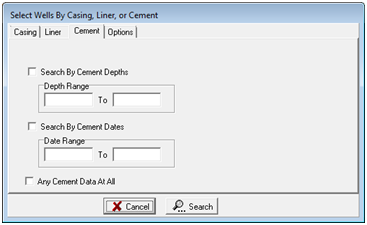

Cement tab

Search By Cement Depth - This option returns wells with any cement inside the set depth range.

Search By Cement Dates - This option returns wells with cement dates between the set range.

Any Liner Data At All - This option returns wells with any loaded liner data, regardless of depth, size, or date.

Options tab

When ALL Conditions Are Met - This option returns wells only when ALL of the selected casing, liner, and cement values meet the selected conditions. This is a more stringent test criteria, and will return fewer wells.

When ANY Conditions Are Met - This option returns wells with at least one of the selected casing, liner, and cement values meet the selected conditions.  This is a more lax criteria, and will return more wells.
