Storing Interval Thickness to an Interval Field

This operation stores each interval’s thickness to a specified field in that interval.

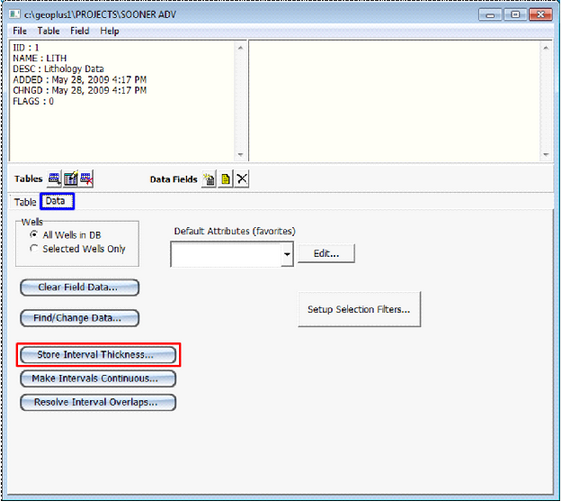

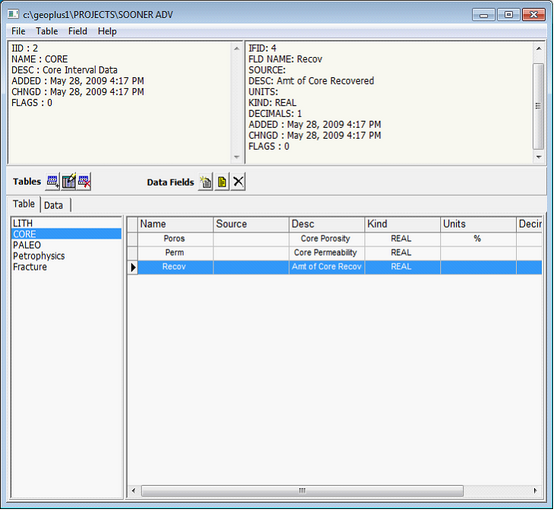

Select the “Maintenance” button on the bottom of the Interval tab on the Main Module.  On the table tab, select the interval field that will store the interval thickness.  In the example below on the left, the “Recov” field on the CORE table is selected. Next, under the Data tab (highlighted in blue on the example to the right) select “Store Interval Thickness” (highlighted in red).

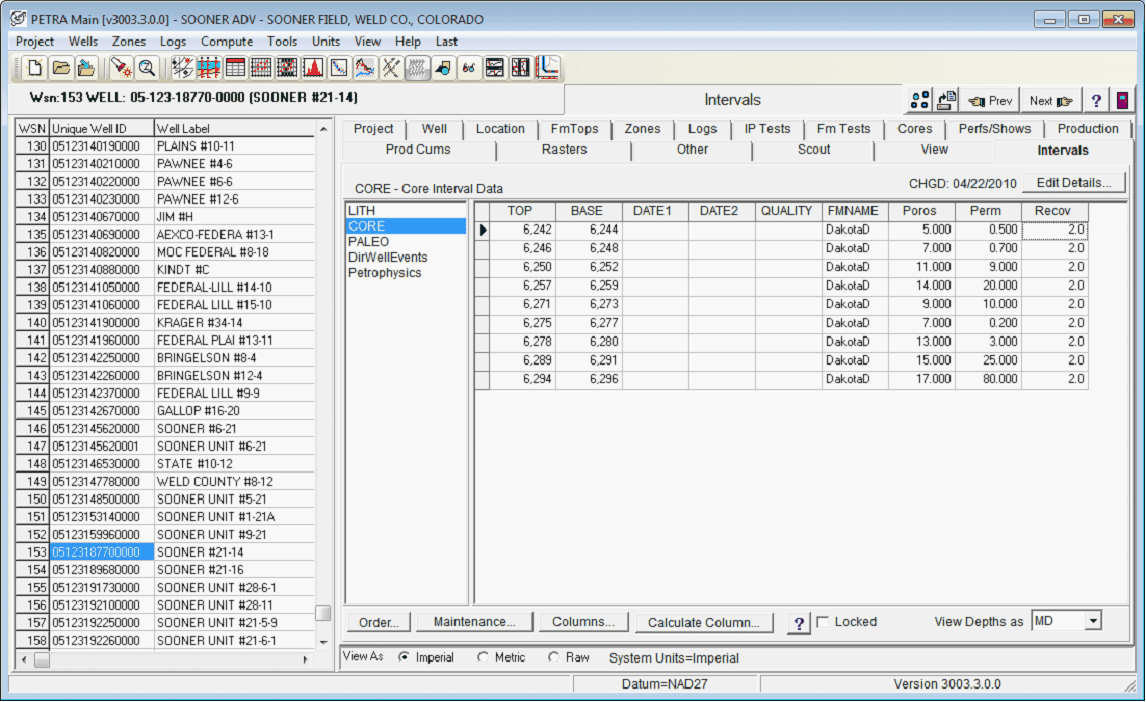

The example below shows that the sidewall core thicknesses (in this case given a thicker interval) all store thicknesses of 2 feet in the “Recov” field.
