View/Edit Zone Data

The View/Edit Zone Data displays and modifies zone data items in a project.

To open this tool, select View/Edit All... button at the bottom of the Main Module's Zones tab, or select Zones>View/Edit on the menu bar at the top of the Main Module.  Additionally, there are a few links to this dialog in other tools.

The left side of the screen contains a nested list of the zones and data items.  Use the "+" button to the left of the desired zone to expand the tree, and then select the desired data item.

The right side of the screen displays a a list of all the wells in the project along with a column for the selected data item's values.  Note that entries here can be edited as well.

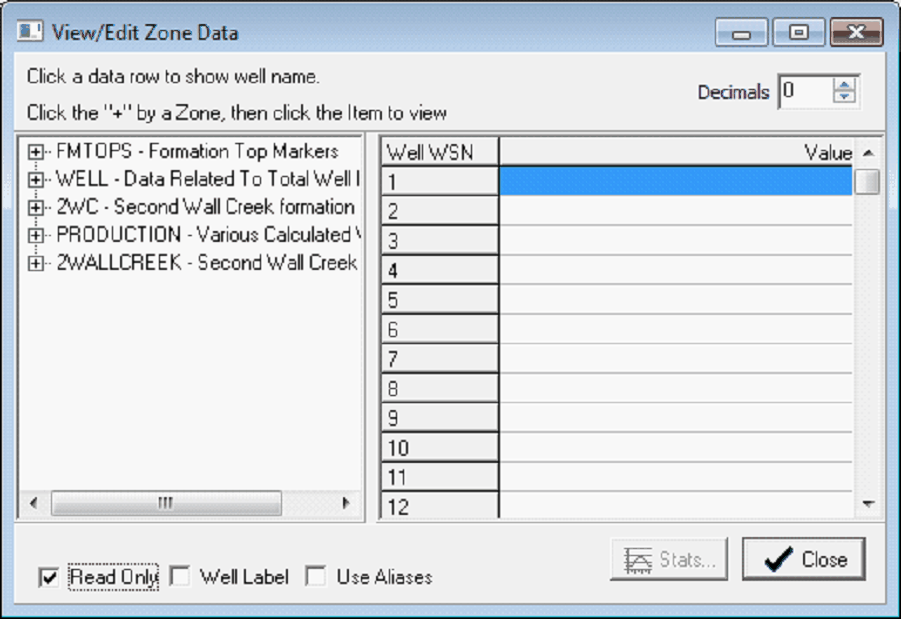

The View/Edit Zone Data tool with no data item selected (left) and with a data item selected (right)
