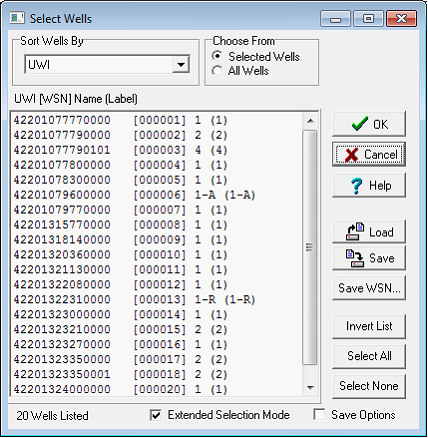

Sort Wells By
|
Petra can display wells by UWI, WSN, Label, and Well Short Name.
|
|
Choose From
|
·Selected Wells - Limits the available well list to only the wells currently selected in the main module.
·All Wells:
o In project mode, displays all wells in the project.
o In prospect mode, displays the wells selected in the active prospect.
|
|
Well List
|
This list contains the wells available for selection.
|
|
Extended Selection Mode
|
Determines how wells are selected from the well list:
·OFF Clicking on a well highlights and selects it. Clicking on a well again deselects it.
·ON Enables click and drag to select multiple adjacent wells.
|
|
Load
|
This option will load a list of wells from a saved UWI list.
|
|
Save
|
Saves currently highlighted wells to a UWI list.
|
|
Save WSN
|
Saves currently highlighted wells to a WSN list.
|
|
Invert List
|
Inverts the selection status of each well in the list.
|
|
Select All
|
This button will select all wells on the available well list.
|
|
Select None
|
This button will deselect all wells on the available well list.
|
