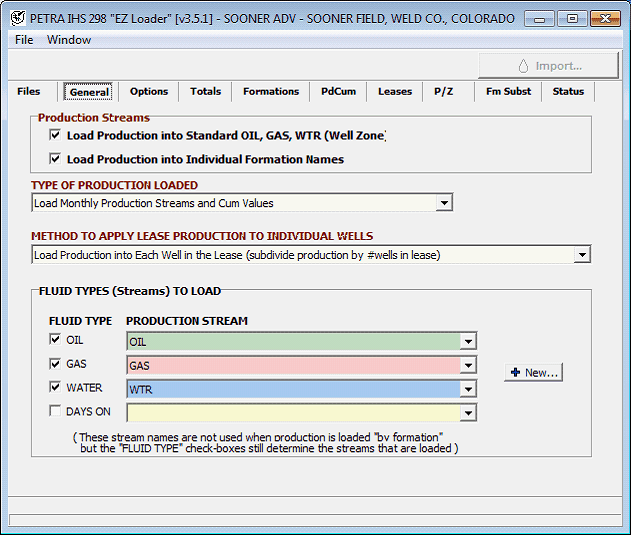

Load Production into Standard OIL, GAS, WTR (WELL ZONE)
|
Loads the total production data into OIL, GAS, and WTR streams. This option sums production from all formations together into a single stream.
|
|
Load Production into Individual Formation Names
|
Creates separate production streams for each formation. The Formation tab selects the imported formation production streams, and the annotation for the individual oil, water, and gas streams.
|
|
Type of Production Loaded
|
Sets which data are loaded into the project. Petra can import monthly production streams, cumulative production values, or both.
|
|
Load Production into First Well Only Listed in Lease
|
Stores production only to the first well listed in the lease. Only use this option if the 298 file only has single-well leases.
|
|
Load Production into Each Well in the Lease
|
Divides the production for the lease by the number of wells in the lease. As an example, in a lease containing 6 wells, each well receives 1/6th of the production.
|
|
Load Production into Each Well in the Lease
|
Stores the total production for the lease in every well in the lease. In a lease containing 6 wells, each well receives all of the production potentially multiplying the actual production.
|
|
Fluid Types (Streams) to Load
|
These boxes set which fluid types are loaded, and how they are named. Note that Petra automatically creates streams named OIL, GAS, WTR. For a different production stream names, select the  button, and create a new monthly production definition
|
