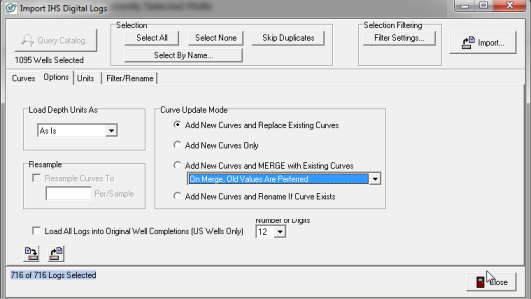

Digital log options



DCDigitalLogoptions

Load Depth Units As

Note: When loading into US projects an automatic unit conversion from Metric to Feet is done.

Resample

Option to change sample rate

Curve Update Mode

·Add or Replace—Replaces existing curve in the database with the incoming duplicate curve.

·Add New Logs Only—Disregards duplicate and keeps existing curve in the database.

·Merge Into Existing Logs—Merges the new incoming curve by depth with the existing curve in the database.

  • Old Values are Preferred
  • Non-null New Values are Preferred
  • All New Values are Preferred

·Add or Rename—Renames the incoming curve and adds it to the database so both curves (curve and curve_1) are available.

Load All Logs into Original Well Completions (US Wells Only)

Select which UWI/API format 10 digit or 12 digit or leave it as default [14 Digit API]
