Wells and AOI tab

Petra can either update pre-existing wells in a project or add completely new wells inside a rectangular Area Of Interest (AOI).

 For the Direct Connect module to update existing wells, the UWIs inside the project need to match the UWIs stored in IHS’s database.

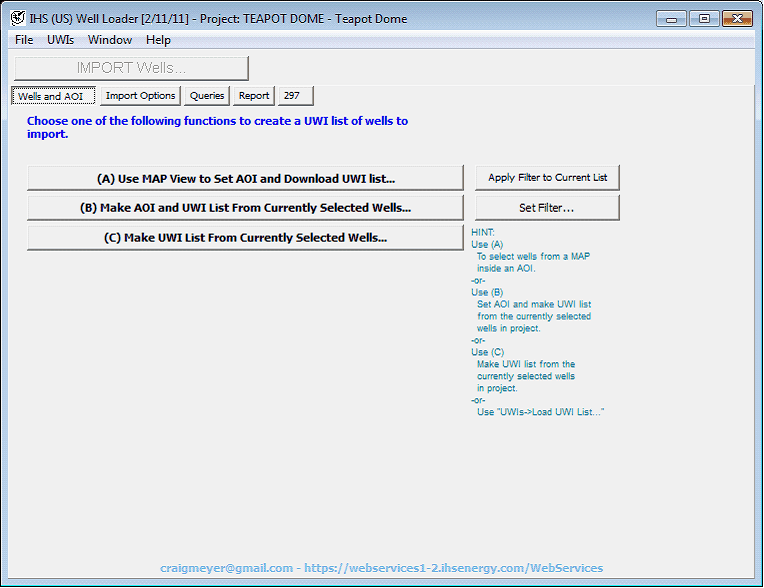

The US/Canada Direct Connect Wells and AOI tab

Use MAP View to Set AOI and Download UWI List…

This option updates wells and adds new wells inside a rectangular “Area Of Interest.”  This option is probably the most useful for new, blank projects or for expanding an existing project.  Whether this map covers Canada (Left) or the continental US (Right) depends on the “Project Area” set in the Map Projection Settings.

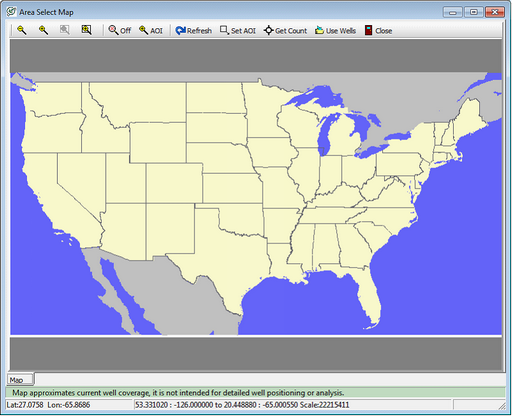

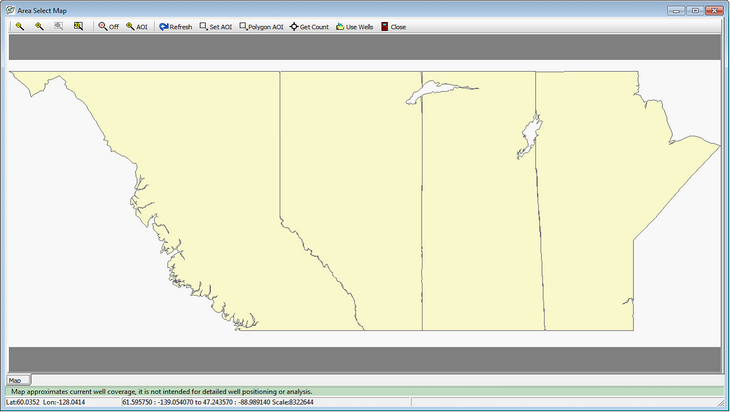

The US/Canada Direct Connect Map AOI.  Note that the area depends on the "Project Area.”

Make AOI and UWI list from Currently Selected Wells…

This option establishes an AOI based on the extent of the currently selected wells.  This option will search the geographic AOI and add new wells not in the project’s database.  This option is great for updating a project to include wells drilled since the last update.

• Make UWI List from Currently Selected Wells… - This option updates only the wells currently selected in the Main Module.  This option will not add new wells.
