Main: Project > Settings > Set tab Colors
The tab Colors window changes the Main Module's tabs from a default grey to a user-selected palate.

|
Clear Current
|
This button removes the current color from the currently selected tab, and returns it to grey.
|
|
Clear All
|
This button removes the current color scheme from all tabs, and returns them to grey.
|
|
System Defaults
|
This button resets the tabs to the default rainbow color scheme.
|
|
Load Template
|
This button loads an external tab color file.
|
|
Save Template
|
This button saves the current color scheme to an external tab color file.
|
|
Interp. Missing
|
This button interpolates tab colors between the top and bottom color. Note that this tool will not interpolate between a selected color and the default grey.
|
The tab Colors window lists the Main Module's tabs in a list.
This tool automatically opens with a default color scheme.
To change a Tabs color:
- Double-click a tab to open the Color selection window.
- Select a color either from the basic colors on the left, or the extended colors on the right.
- SelectOKto change the color and return to the Tab Color window.
- SelectOK to save the changes.

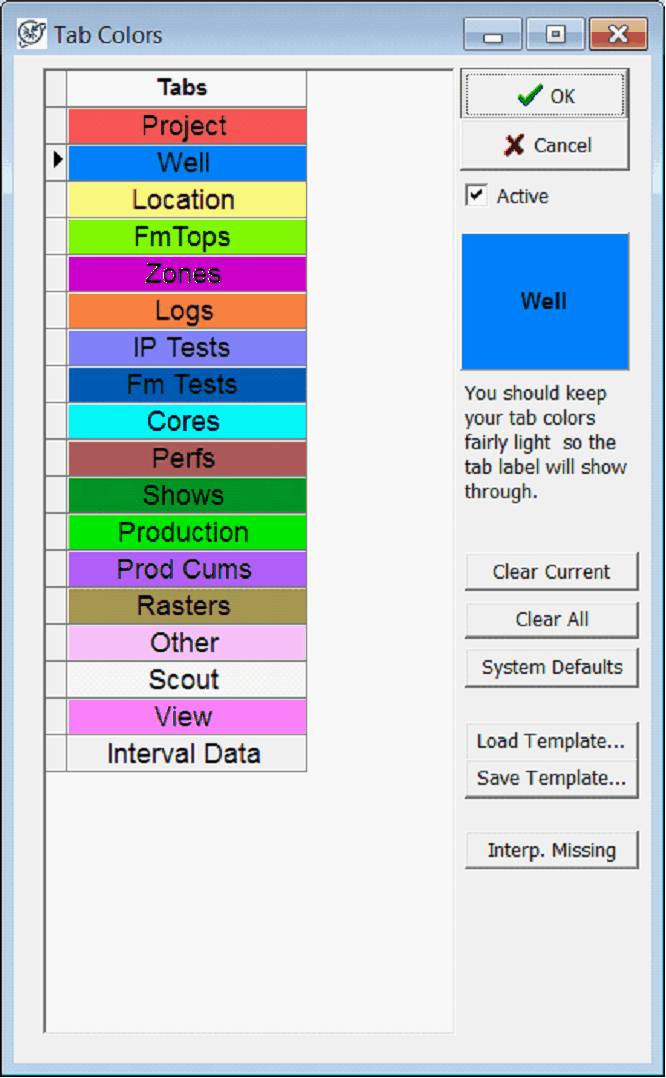

Selecting a color for a tab
|
