Point Events

Point events are a special kind of event that reflect a point or depth along the well.

To create a point event, select the button on the events toolbar. Next, click on the well at the depth where you would like to place your event. After setting the location, the Edit Event tool will open:

Data tab

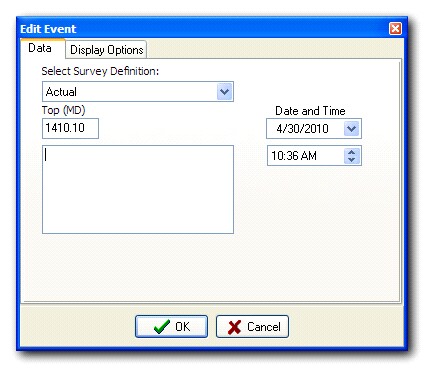

embim165

Select Survey Definition	Petra can handle multiple sets of directional surveys. This dropdown sets which set of surveys the point event will be associated with.
Top	Sets the depth of the point event.
Text Box	Sets the text that will be displayed in the event.
Date and Time	These two entries set the date and time of the event. By default, this is set to the time the event is created. It's probably a good idea to change these to reflect the date and time of the drilling event.

Display Options tab

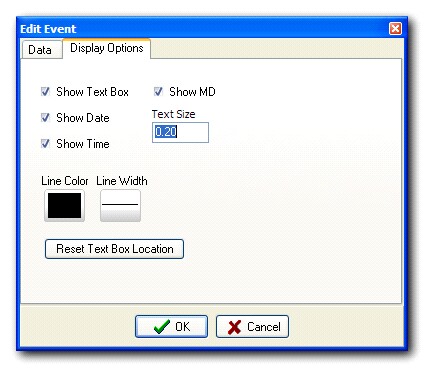

embim166

Show Date	This option displays the date (set on the Data tab) on the point event.
Show Time	This option displays the time (set on the Data tab) on the point event.
Show MD	This option displays the MD (set on the "Top" entry on the Data tab) of the point event.
Text Size	Sets the size of the text on the point event label in inches.
Line Color	Sets the line color of the border around the point event text box.
Line Width	Sets the line color of the border around the point event text box.
Reset Text Box Location	If the text box is not visible at your current zoom level, click this button to reset its location.
