3DViz Perfs
3DViz: Wells > Shows

Petra displays perfs as a cylinder around the wellbore.

 Petra displays all perfs the same color.

To modify how shows are displayed:
  • Select the button on the on the Layer Toolbar.
  •  Select Wells > Shows on the 3dViz Modulemenu bar.

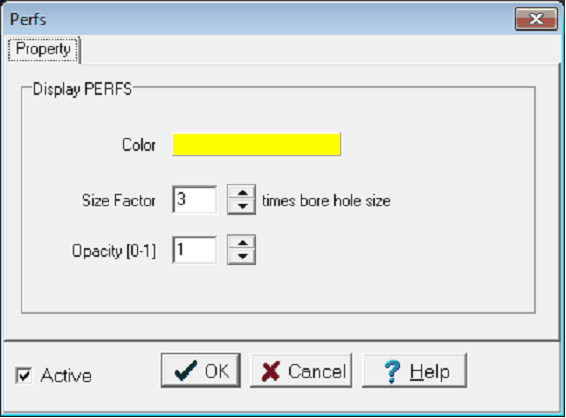

Color

Sets the color for the relevant show type.

Size Factor

Sets the size of the perf cylinder relative to the borehole.  A size factor of "3" will plot shows as three times larger than the borehole.

Opacity

Sets the opacity of the perf cylinders on a scale from 0 (transparent) to 1 (completely opaque).
