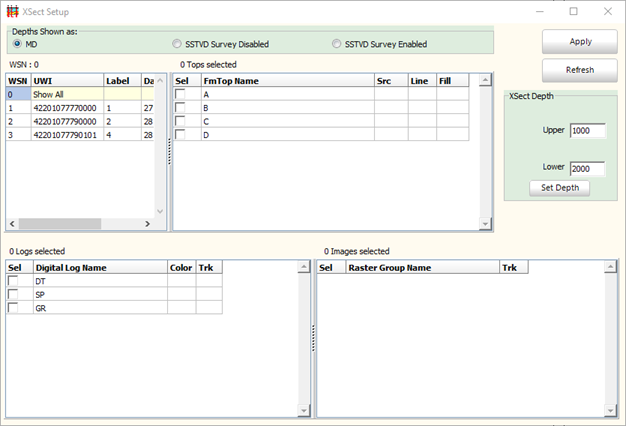

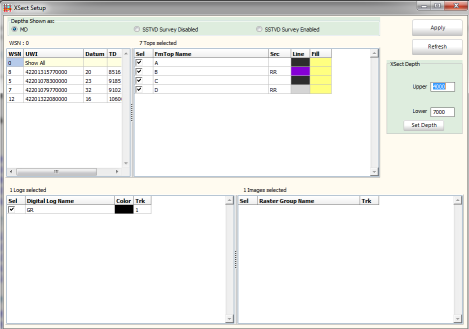

The Cross Section Quick Start tool provides a single dialog for users to select and set display options for existing tops, logs, and rasters for each well in the cross section. To launch the Quick Start tool, Click the  button on the Cross Section modules toolbar on the left side.
|
Depth Shown as:
|
Sets depth type
- MD (Measured depth)
- SSTVD Survey Disabled
- SSTVD Survey Enabled
SSTVD uses well's active datum and directional survey points to create a curve that lists the SSTVD for every MD
|
|
XSect Depth
|
Sets the upper and lower depths of the cross-section
|
|
WSN
|
Lists all wells in the cross section and provides UWI, Datum, TD and Deviation type.
|
|
Tops
|
List of available Tops for cross-section, provides following attributes: Source, Depth, Line color and Fill pattern. Individual display options are accessed by clicking on a Tops individual row.
|
|
Logs
|
List of available Logs for cross-section, provides following attributes: Log Name, Color, Track and Upper and Lower depths. Individual display options are accessed by clicking on an individual logs row.
|
|
Rasters
|
List of available Rasters for cross-section, provides following attributes: Raster Name, Track and Upper and Lower depths. Individual display options are accessed by clicking on an individual logs row.
|
|
Apply
|
Applies changes to cross-section.
|
|
Refresh
|
Cancels changes and returns to previous state.
|
|
