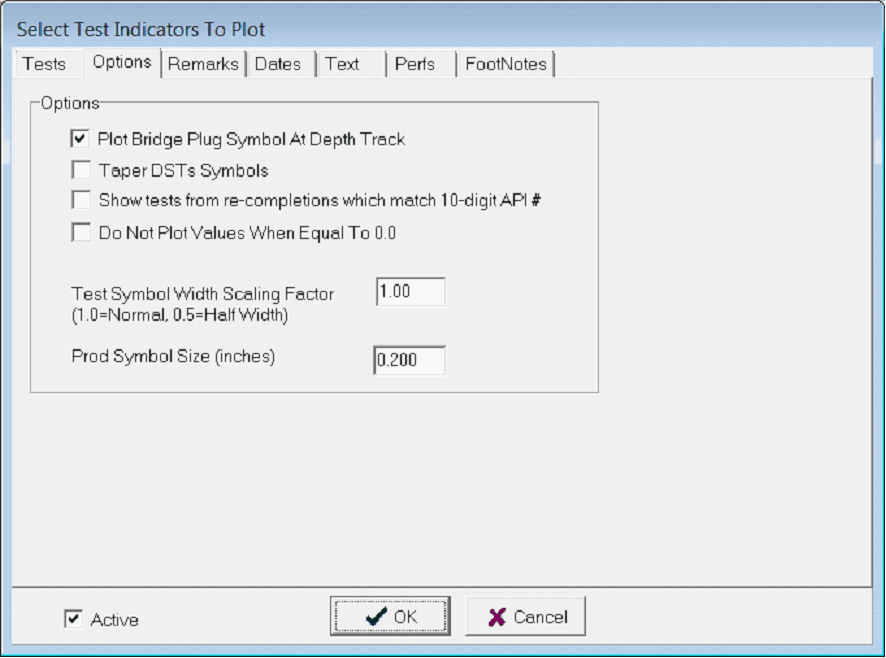

Plot Bridge Plug Symbol At Depth Track
|
By default, Petra plots bridge plugs in the same track and relative position as perfs. This option overrides the position of the perfs and instead plots bridge plug symbols at the depth track.
|
|
Taper DST Symbols
|
By default, Petra draws DST symbols as rectangles, This option instead tapers the DST symbols.
|
|
Show tests from re-completions which match 10-digit API#
|
Generally, Petra treats a recompilation as separate wells. Accordingly ,Petra only draws the tests from the single well displayed on the cross-section and does not include the recompilation. This option instead forces Petra to display tests from all recompletions.
|
|
Do Not Plot values When Equal to 0.0
|
This option suppresses plotting values equal to zero. This can be useful for simplifying plots.
|
|
Test Symbol Width Scaling Factor
|
This option scales the width of all test symbols, where 1 is the default.
|
|
Prod Symbol Size
|
This option sets the size of the production symbols in inches. The default setting is 0.2 inches.
|
