Build well labels

Main: Wells > Build Well Label

The Build Labels function can build a "label" string and store in either the Well Label or Sort Key field using parts from other well header fields. This can be very useful in project areas such as the Mid Continent where many wells have the same well name or number in different locations. Building a label using section-township-range fields makes well identification much easier. Well labels may contain up to 32 characters.

Data tab

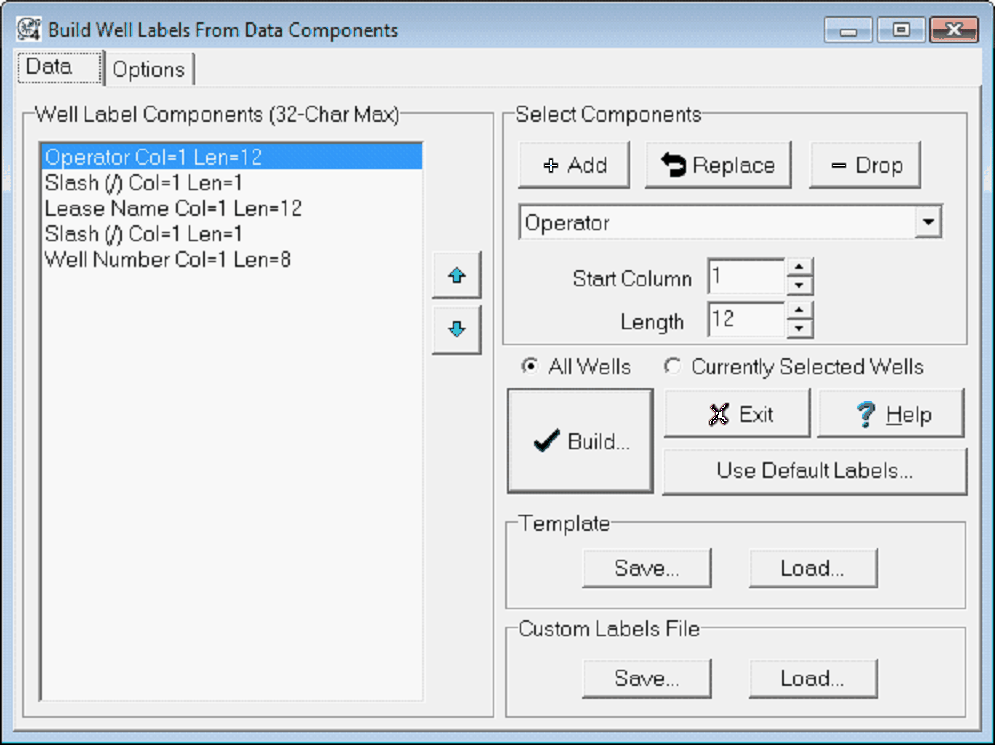

Well Label Components	Build well labels to define each label components. Each component is selected from the Select Component section along with its length and starting position.Well labels will be built for either "All Wells" or only the "Currently Selected Wells" depending on the option selected.
Add	Adds selected component from the drop down list to the Well Label Components list.
Replace	Replaces the highlighted component on the Well Label Components list with the component on the drop down menu.
Drop	Removes the highlighted component on the Well Label Components list.
Start Column	Sets the starting position in the component field. For example, if you wanted the API series number, set the start column to 6 and the length field to 5.
Length	Sets the the number of characters extracted from the component field.
Use Defaults	Creates labels using the UWI for each well.
Build	Builds the labels and writes the results to the database
Template	You can save and load your well label component definition to a .BWL file using the Template Save and Load functions. The template file contains the settings to rebuild the labels using the same scheme as previously defined.
Custom Labels File	save a file containing the actual well label values using the Save and Load functions under the Custom Labels File section.

Options tab

Trim Leading Zeros From TRS Data	Trim leading zeros from township, range and section values. For example, a value of 03 to be written as 3
Drop Unnecessary Special Characters	Use special characters as a component, such as, "-", "/" of "#".
Store Computed Label In	Determines if the computed label is stored in the Well Label field or the Sort Key field in the database.
Presets	Contains predefined component lists. These are kept as .BWL files in the "parms" folder under the Petra program directory (typically petrasrv\parms or geoplus1\parms). After selecting a Preset, click the "Load Preset" button to load and see the component list.
