The Raster Group Maintenance Tool controls image group names, establishes raster group aliases, and performs other raster group maintenance tasks.

To open the Raster Group Maintence tool, select the button on the bottom of the Main Module'sRaster tab.

Details tab

The Details tab displays and modifies group names and group description.

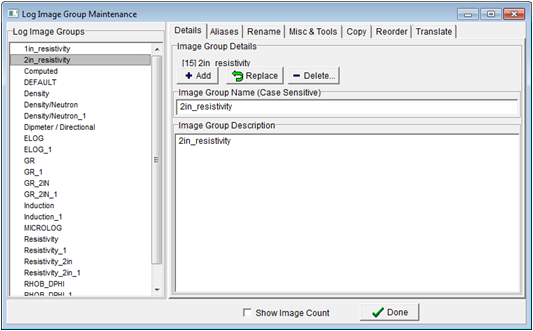

The Log Image Group Maintenance Details tab

Image Group Name - This entry sets the selected image group name.

Image Group Description - This entry sets the image group description.

To add a new group name, enter the desired group name and description

- This button adds a new group image using the entries in the group name and description entry boxes.

- This button overwrites the currently selected image group's name and description with the entries in the relevant boxes.

- This button erases the currently selected image group on the Log Image Groups list.  Petra's link to all the image and LIC files will be severed, but the actual files themselves will not be erased.

Aliases tab

The Aliases tab establishes raster log group names.  In practice, this option will attempt to replace a missing group with one of the other "equivalent"  raster group on the alias list.

The fundamental problem with log data is the proliferation of log names created by different commercial data vendors and individual users.  The same general type of raster log (such as gamma ray and resistivity curves) can have hundreds, if not thousands, of different names in a single project.

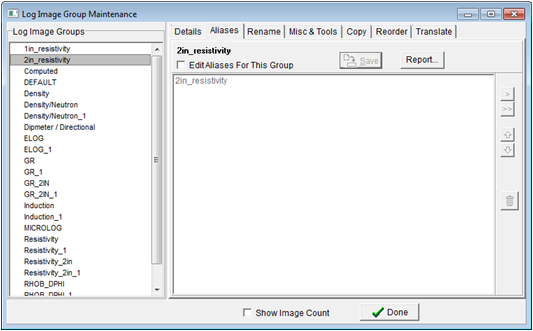

The Log Image Group Maintenance Alias tab

Rename tab

This option renames all members of a selected group name to a new group name.

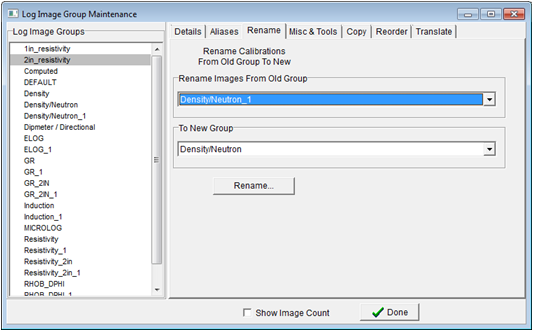

The Log Image Group Maintenance Rename tab

Misc & Tools tab

The Misc & Tools tab performs multiple maintenance tasks for the raster groups in the Petra Project.

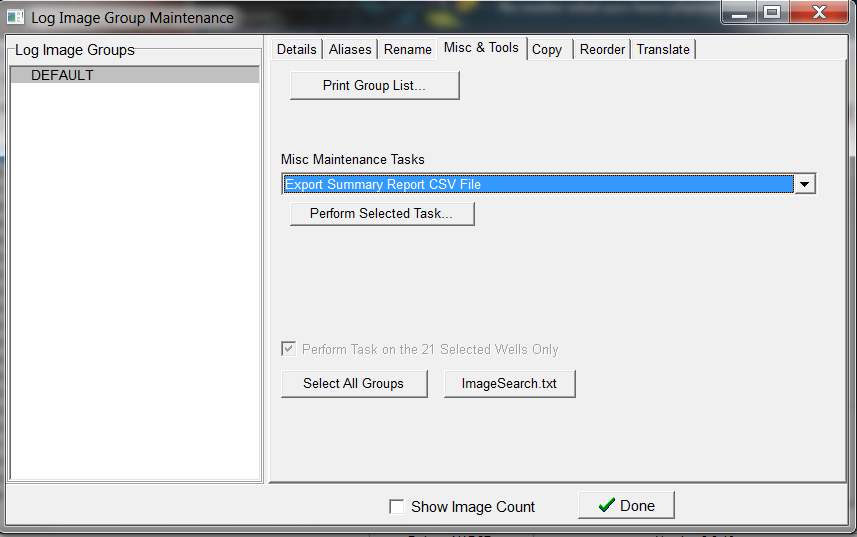

The Log Image Group Maintenance Misc & Tools tab

Print Group List - This tool creates a simple list of all the raster group names in the project.

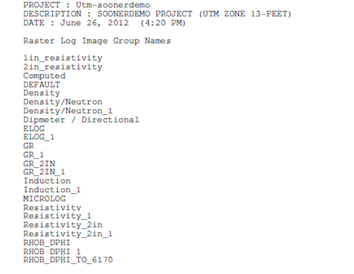

An example of the print group list

Misc Maintenance Tasks

·Export Summary Report CSV File - This option creates a *.CSV file for every raster in the project.  This includes fields for UWI, TD, group name, top (depth1), base (depth2), the directory containing the raster's LIC and TIF files, and a comment field.  This can be particularly useful for dealing with directory changes due to moving a project or raster data.  One great technique is opening the *.CSV file in a spreadsheet, and sorting by comment to isolate which directories no longer work.

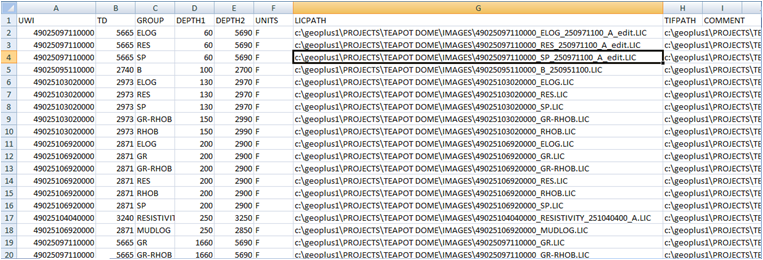

A Summary Report CSV File

·Delete Groups With No Images - This option deletes groups with no associated images.  This can be useful when cleaning up a project.

·Delete All Groups - This option deletes all groups from the project.  More specifically, this removes the references in the project database to the LIC and TIF files.  The LIC and TIF files are not erased, and can be reimported into a Petra project.

·Delete Selected Groups - This option deletes groups selected on the "Log Image Groups" list from the project.  More specifically, this removes the references in the project database to the LIC and TIF files.  The LIC and TIF files are not erased, and can be reimported into a Petra project.

·Resolve Image Paths - This option uses the search criteria established by ImageSearch.TXT to permanently fix the project database.  Note that this method will attempt to find every missing LIC and TIF file in a project; depending on the number of missing files and the specificity of the search criteria, this can take a very long time.

·Clear MJ LogSleuth Flags - This option clears the MJ LogSleuth Flags in the project database.

·Add Missing Well Records To LIC - This option adds missing well header information to LIC files.

·Repair/Synchronize LIC File Groups - This option will check the group numbers and names in all LIC calibration files and correct any incorrect image/group assignments.

·Find/Replace LIC/TIF Path Prefixes - This tool performs a "find and replace” operation on the LIC and TIF pathways in Petra's database.  This is useful for changing the first part of a path, or "prefix" when the folder containing the rasters has moved.

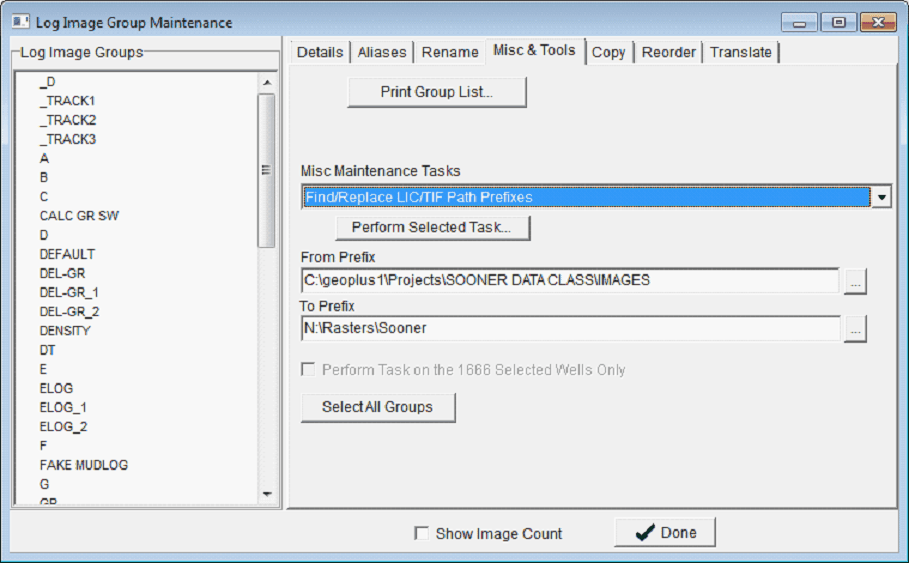

The Find/Replace LIC/TIF Path Prefixes will replace the anything with the prefix of “C:\geoplus1\Projects\SOONER DATA CLASS\IMAGES” with "N:\Rasters\Sooner"

·Delete Uncalibrated Rasters - This option removes group names without any depth calibration points.

·Change Blanks to Underscores in LIC and Image Names - This option converts any blanks in the LIC and image filenames to underscores.  As an example, "49025103990000 Resistivity.TIF" would be renamed to "49025103990000_Resistivity.TIF"

·Resolve Duplicate LIC References - This function will scan all LIC Filename references in the database looking for multiple groups referencing the same LIC file. When a duplicate reference is found, a copy of the LIC file is created.

·Set MJ LogSleuth Flags - This option changes the MJ LogSleuth Flags in the project database.

·Delete Association if LIC/TIF Files Can Not Be Found - This option removes group names from the project if the LIC and TIF files are missing.

·Delete Pay Data From LIC Files - This option removes pay information from the final line of LIC files.

·Export Image Counts CSV File - This option creates a *.CSV file that displays the well count versus group name for the project.  This can be useful for eliminating group names with low well counts.

·Convert File References to UNC Names - This option converts local file system references to use universal naming convention.  As an example, this tool converts file names like H:\Images to reflect \\Server\Images

·Create Report Showing Groups That might Be Merged -

·Replace LIC/TIF Paths - The biggest difference is that, instead of replacing the first part of the path or “prefix”, this tool replaces the only the specific path given. This tool leaves subfolders alone, making it a much more specific tool.

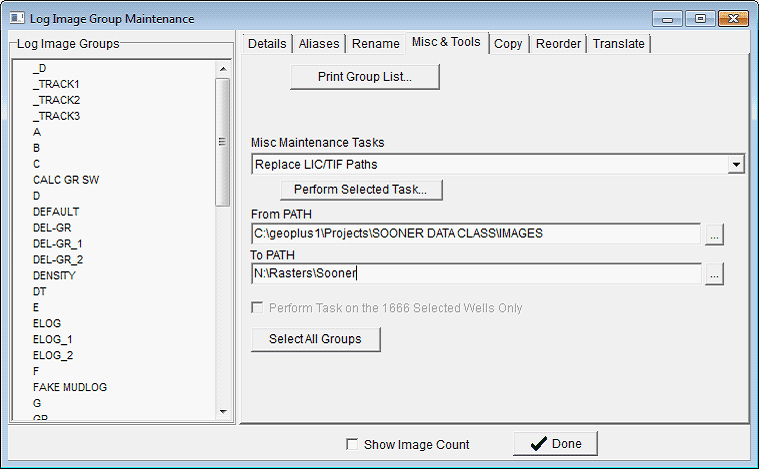

The Find/Replace LIC/TIF Path  will replace ONLY the path “C:\geoplus1\Projects\SOONER DATA CLASS\IMAGES” with "N:\Rasters\Sooner"

·Change LIC "HEADERTOP/BOT" References to "LOGHEADERTOP/BOT" - Old projects sometimes store the scale section of the raster image as the header rather than as a scale section.  This option renames the section stored as the log header

·Disassociate All MJ Rasters - This option removes all references to the MJ LogSleuth raster logs.

·Set Image Source for Selected Groups and Wells -

Select All Groups - Selects all groups in Log Image Groups pane.

ImageSearch.TXT - Creates ImageSearch.TXT file and places in Project directory. ImageSearch.TXT file establishes a set of criteria where Petra will automatically  search additional paths if the images are not found in their original locations.

Copy tab

The Copy tab copies the image files from their original location to a specified path.

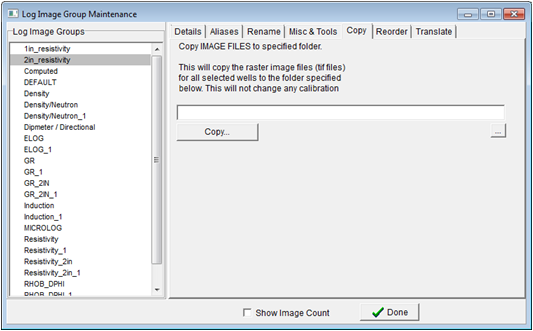

The Log Image Group Maintenance Copy tab

Reorder tab

The Reorder tab sets the order of the log image groups.

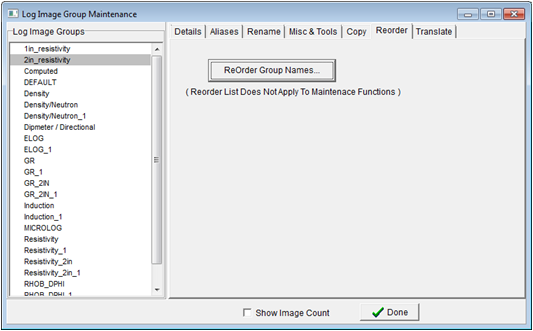

The Log Image Group Maintenance Reorder tab

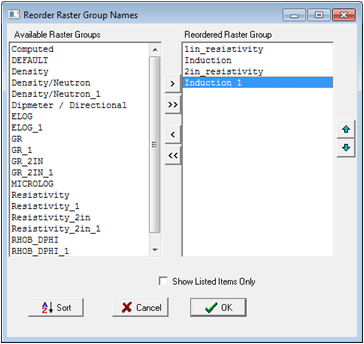

The Reorder Raster Groups Names tool

Available Raster Groups - This list shows every raster group in the project.

Reordered Raster Group - This list shows the reordered raster group names.  Use the < and > keys to add and subtract group names to the Reorded Raster Group list, and the up and down arrow keys to change the order of a selected raster group.

- This button adds the selected group name from the Available Raster Groups list to the Reordered Raster Group list.

- This button adds the all group names from the Available Raster Groups list to the Reordered Raster Group list.

- This button removes the selected group name from the Reordered Raster Group list.

- This button removes all group names from the Reordered Raster Group list.

- These buttons change the order of the selected group name on the Reordered Raster Group list.  Selecting the up arrow moves the selected group name higher, while the down arrow moves the selected group name lower on the list.

- This option resorts the group names on the Available Raster Groups list in alphabetical order.

Translate tab

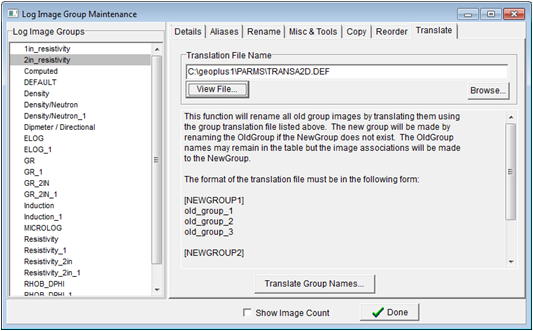

The Log Image Group Maintenance Translate tab
