Set Recompletion Locations to Original Hole Location

Petra stores recompletions as separate wells.  Generally, the primary completion will have a 14 digit API number ending in 0000, while additional recompletions will simply append 0001, 0002, 0003, and so on.  This tool overwrites these recompleted wells' locations with the primary location's location.

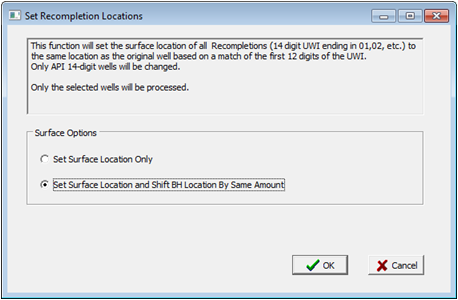

To move recompletion locations to the primary location, select Compute>From Locations>Set Secondary Well Locations to Primary Well Location from the menu bar at the top of the Main Module.

Surface Options

Set Surface Location Only - This option simply moves the recompleted wells' surface locations.  Bottom hole locations will remain unchanged.

Set Surface Location and Shift BH Location By Same Amount - This option moves the recompleted wells surface location to the primary well's surface location.  This option also moves the recompetion's bottom hole locations by the same amount.
