Set Secondary Well Location to Primary Well Locations

Petra stores a vertical pilot hole and directional well combination as a separate "primary" and "secondary" wells.  Generally, the primary vertical well have a 14 digit API number ending in 0000, while additional directional wells from teh same pad will simply append 0001, 0002, 0003, and so on.  This tool overwrites these recompleted wells' locations with the primary location's location.

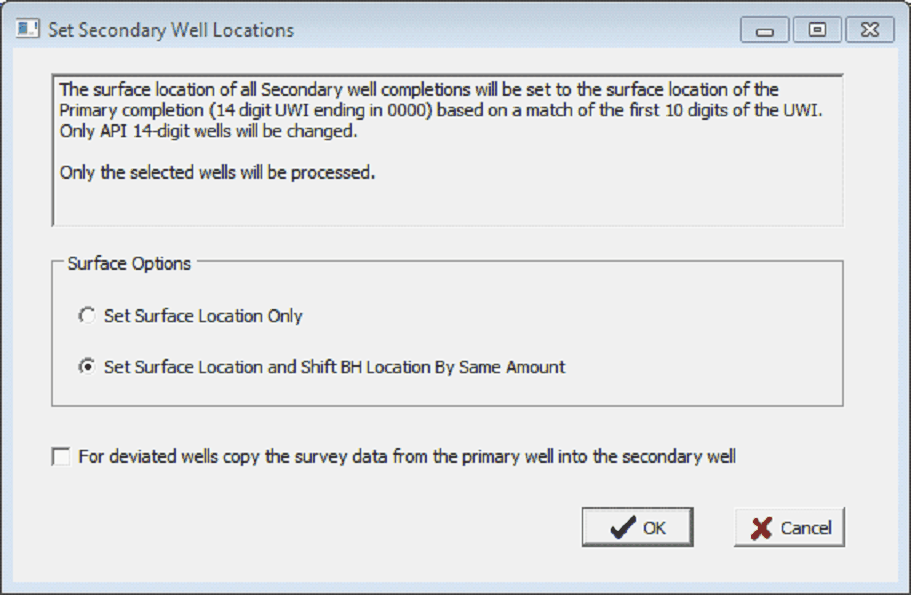

To move secondary locations to the primary location, select Compute>From Locations>Set Secondary Well Locations to Primary Well Location from the menu bar at the top of the Main Module.

Surface Options

Set Surface Location Only - This option simply moves the secondary wells' surface locations.  Bottom hole locations will remain unchanged.

Set Surface Location and Shift BH Location By Same Amount - This option moves the secondary wells surface location to the primary well's surface location.  This option also moves the recompletion's bottom hole locations by the same amount.

For deviated wells copy the survey data from the primary well into the secondary well - This option will copy the directional survey data from the primary well into the secondary wells.
