Plot Options

The Plot Options tool sets a few additional options for the Production Analysis module.

To open the Plot Options tool, select "Plot Options" at the top of the Decline Curve Analysis menu bar.

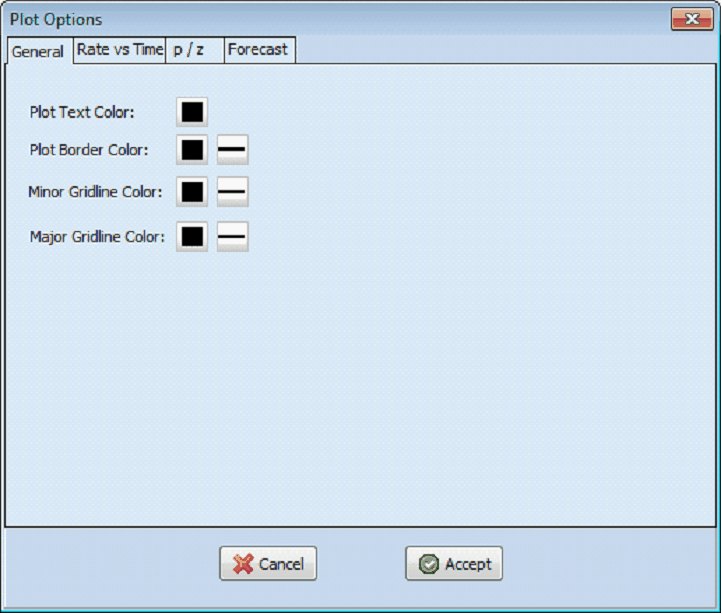

General tab

Plot Text Color - This option sets the text color on the Decline Curve Analysis Module.

Plot Border Color & Thickness - The left button sets the border color around the plot, while the right button sets the line thickness

Minor Gridline Color & Thickness - The left button sets the minor gridline's color on the plot, while the right button sets the line thickness

Major Gridline Color & Thickness - The left button sets the major gridline's color on the plot, while the right button sets the line thickness

Rate vs Time tab

Plot Perfs - This option plots perfs along the bottom horizontal axis of the plot.  Note that this option is also available on the toolbar at the top of the Decline Curve Analysis Tool.

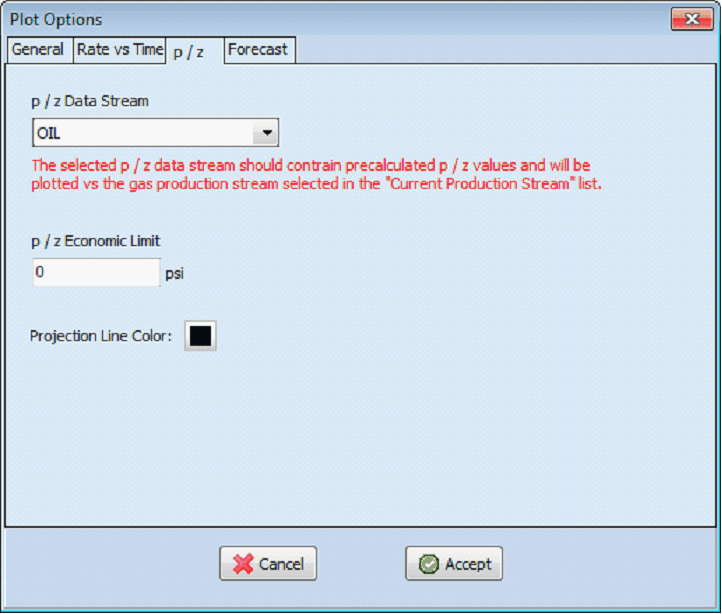

p/z tab

p/z Data Stream - This dropdown selects the data stream containing the p/z stream.

p/Z Economic Limit - This option sets the economic limit in psi.

Projection Line Color - This limit sets the projection line's color.

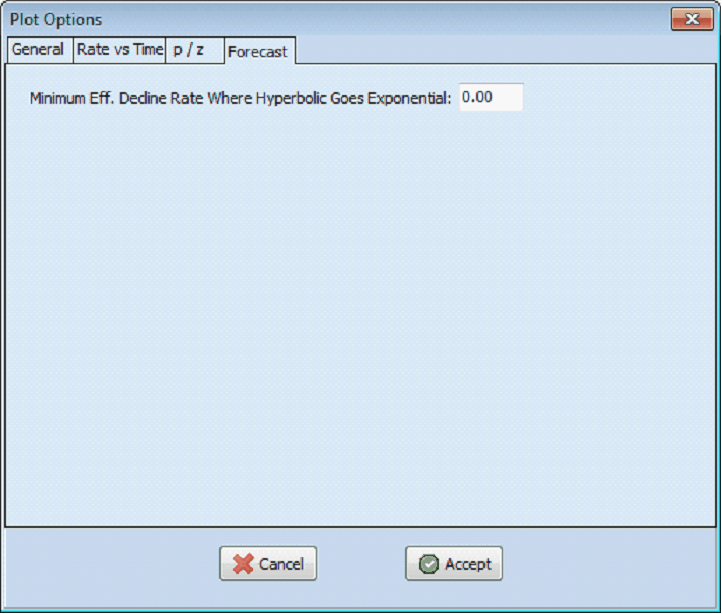

Forecast tab

Minimum Eff. Decline Rate Where Hyperbolic Goes Exponential - Over the course of a well's life, production can switch from hyperbolic production to exponential. This option sets the minimum effective decline rate where this production switches over.
