Main: Zones > View/Edit

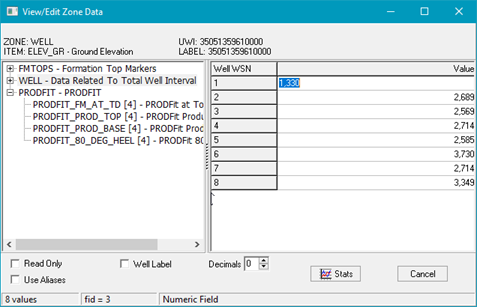

View/Edit Zone Data



The View/Edit Zone Data displays and modifies zone data items in a project.

To open this tool:
  • Main: Zones > View/Edit
  • Click the Edit button on the Zone tabs toolbar

  • Additionally, there are a few links to this dialog in other tools.

left pane

Contains a nested list of the zones and data items.  Use the "+" button to the left of the desired zone to expand the tree, and then select the desired data item.

right pane

Displays list of all the wells in the project along with a column for the selected data item's values.

Read Only

Disables edit function

Use Alias

Lists known Aliases (Edit feature is disabled when selected)

Well Label

Toggles well label on

Decimals

Selects number of decimal values to display

Status

Displays histogram of data item
