Data border gap

The data border gap establishes a space between the extent of the wells and the border. Without a gap, wells would fall right on the border, making them difficult to see.

To establish a data border gap, select Display>Data Border Gap on the menu bar at the top of the Map Module.

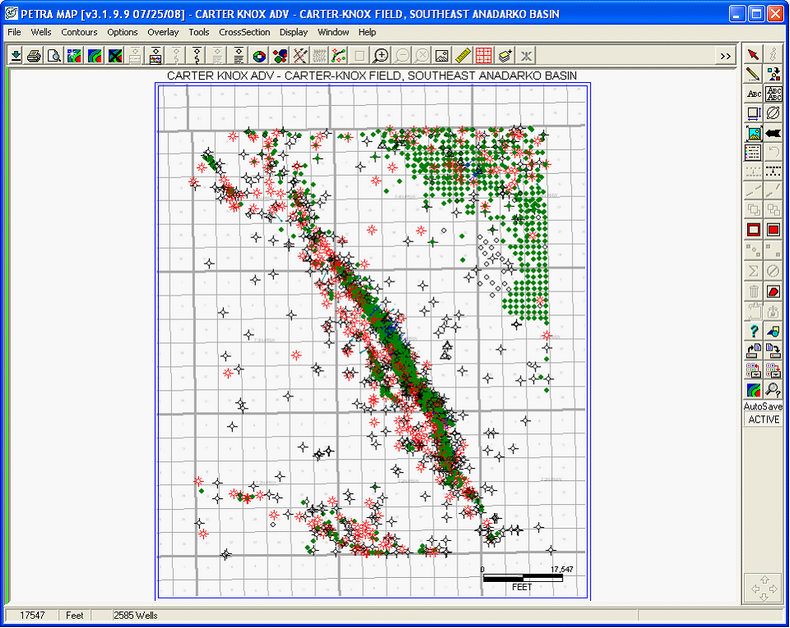

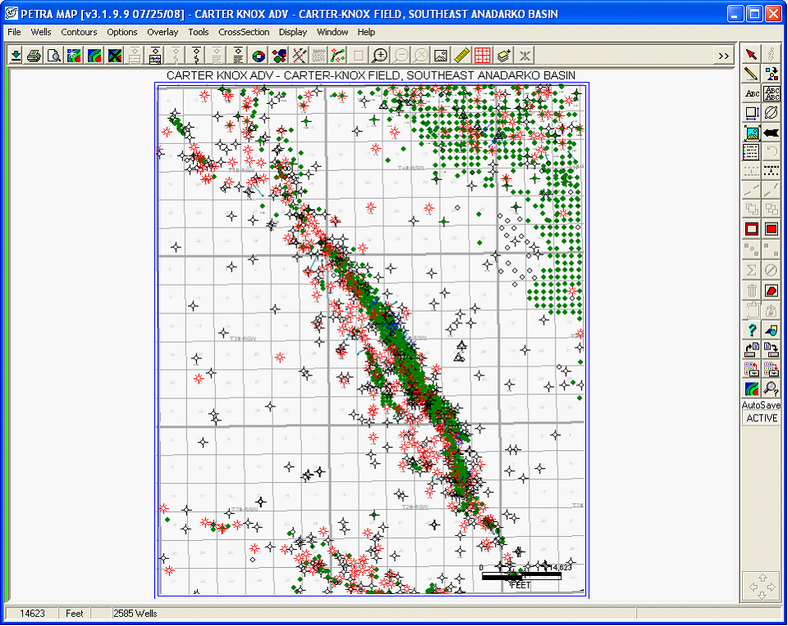

No border gap (Left) and a 10% Border Gap (Right)

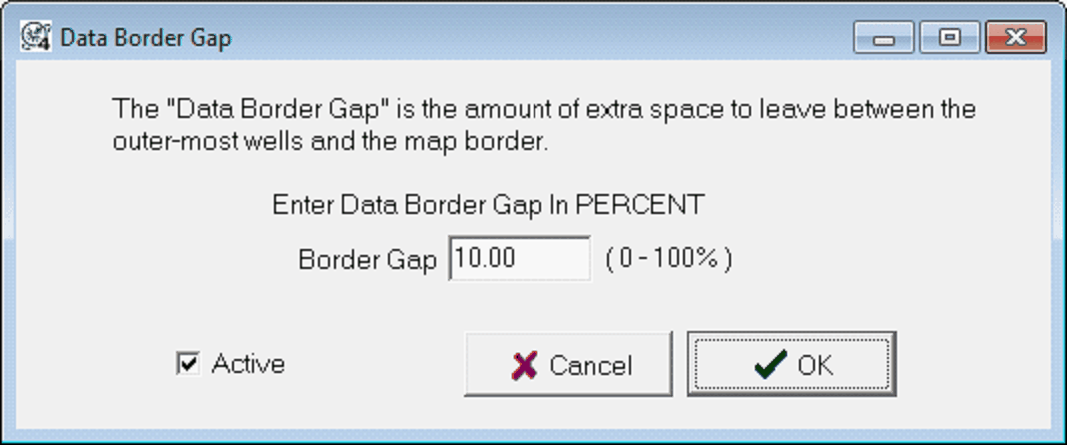

The Data Border Gap Tool
