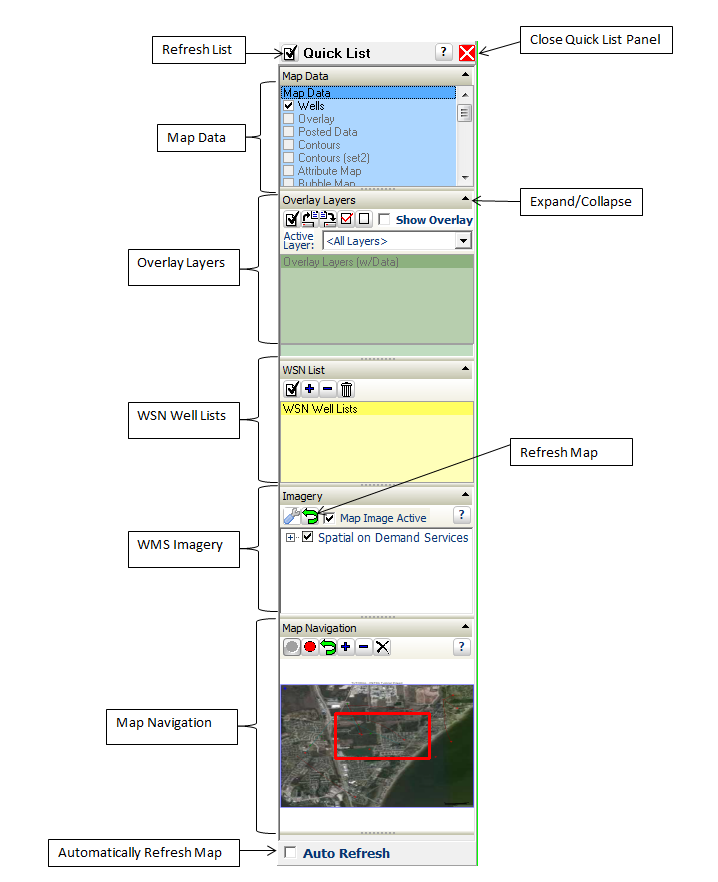

The map modules Quick List modifies the active features on a map. The Quick List is a fast way of changing elements on the map.
To show the Quick List:
·Click
 on the tool bar
·
Map: View > Quicklist > Show
To hide the Quick List:
Click
 button on the upper right corner of the Quick List
·
Map: View > Quicklist > Show
Map Data Section
The Map Data section toggles and modifies various map display features.
The Quick List's Map Data Section
Double-clicking any item in the list will bring up the appropriate dialog box to set the display parameters for that item.
Double-clicking on the "Wells" item brings up the "Select Wells by Data Criteria" search function.
Overlay Layers Section
The Overlay Layers section toggles the layers inside the currently loaded overlay file.

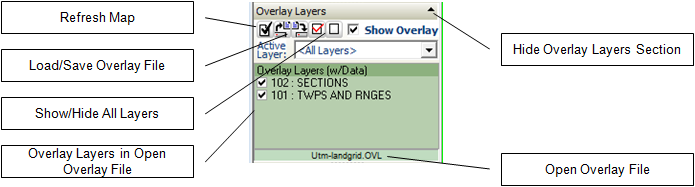

The Quick List's Overlay Layers Section
 - This option refreshes the map to reflect any changes to the selected overlay layers. Select this option after adding or removing checks to the listed overlay layers.
 - This option reloads the overlay file. Any changes made to the overlay will be lost.
 - This option saves the overlay file. This will overwrite the old file with any changes made in the Map Module.
 - This option adds a check to all overlay layers. You'll still need to refresh the map in order for the changes affect the Map Module.
 - This option removes the checks from all all overlay layers. You'll still need to refresh the map in order for the changes affect the Map Module.
Show Overlay - This option toggles the overlay layer.
Active Layer - This option sets a specific overlay layer as the "active layer." Only items in this can be selected with the mouse. If the active layer is a read-only or associated layer, you will NOT be able to select any items.
WSN Well Lists Section
The WSN List section manages well selection using multiple WSN list files. This tool toggles selections of wells in the one or more WSN list files.
Using any of the "Select Wells" menu functions will cause the WSN List files to be "unchecked."
Also, when the list is cleared or when all items are "unchecked", the map reverts back to a "default" well list that was established prior to selecting WSN list files.

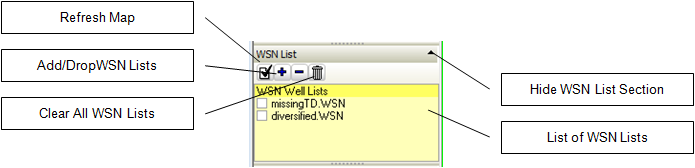

The Quick List's WSN List Section
 - This option refreshes the map to reflect any changes to the selected overlay layers. Select this option after adding or removing checks to the listed overlay layers.
 - This option adds a WSN List to the WSN List Section. In the "Select One or More WSN List Files" section, navigate to the desired directory and select the relevant WSN files.

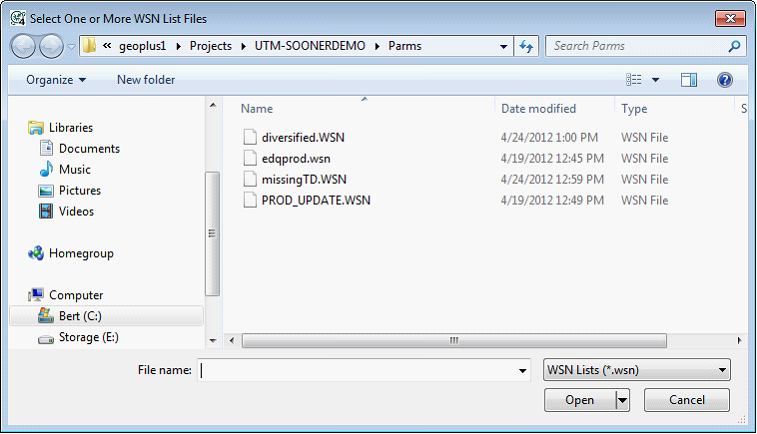

Adding a Saved WSN List to the WSN List section
 - This option drops the selected WSN list off the WSN List section. Note that this does not delete the WSN list.
 - This option drops all WSN lists off the WSN List section.
Imagery Section

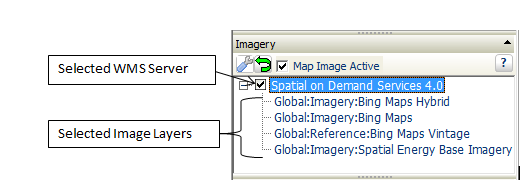

The Quick List's Imagery Section
 - This option opens the WMS Imagery Settings tool.
 - This option refreshes the WMS Image from the WMS Server
Map Image Active - This option toggles the WMS Image on the Map Module.
Map Navigation Section
This section displays a small thumbnail picture of the map. When zoomed in, this section will display a red rectangle outlining the extents of the area shown on the screen relative to the entire map area. Moving this red rectangle will pan the area displayed on the Map Module. Resizing the red rectangle will change the area displayed on the Map Module.
For more information, see Map Navigation.

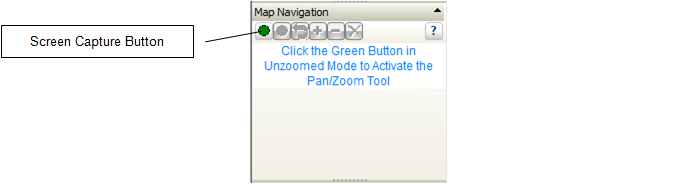

Inactive Map Navigation
Capturing a Map Screenshot with the Green "Open" button
 - This option captures a screenshot of the Map Module for the Map Navigation section. The Map Module must be completely zoomed out before selecting this button.

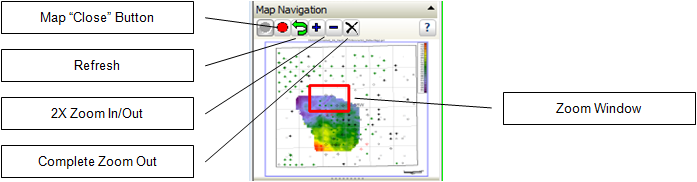

Active Map Navigation
With a screenshot, Petra draws a red rectangle or "Zoom Window" on the Map Navigation window to show the extents of the current screen relative to the full extent of the map. Zooming in and out will change the dimensions of this rectangle. Dragging the zoom window will scroll around the full map. Resizing the zoom window will change the zoom on the Map Module.
The Quick List's Map Navigation Section
 - This option closes the Map Navigation section.
 - This option refreshes the map.
 - This option zooms in by 2X.
 - This option zooms out by 2X.
 - This option zooms out to the full extent of the map.
|
