Save Overlay Layer File

Overlay Layer Files (*.LAY) store the data from a single overlay layer to an external file.  This can be useful for sharing data between , or for setting up an associated layer for multiple  users.

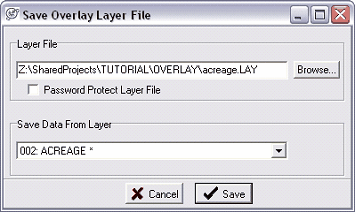

In the Map Module, select Overlay>Save File(s)>Overlay Layer File from the menu bar at the top of the screen.

Layer File - This entry sets the location of the saved layer file.  When creating associated layers, make sure to save this file is a location accessable to all users, such as on a network.

Password Protect Layer File - This option adds an additional password to the overlay file.  This can be useful when working with proprietary or sensitive information.

Save Data From Layer - This option sets the overlay layer that will be exported to the external file.
