Slip Log Depth Scale

Raster logs are displayed using a specified depth scale in units/inch.

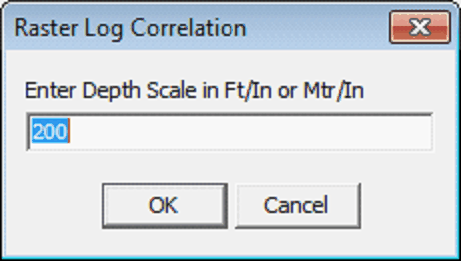

To change the depth scale on the on the Slip Logs Module, select on the toolbar or select Depths>Depth Scale on the menu bar on the top of the Slip Log Module.
