3DViz Tops



The 3DViz Module displays tops as a thin disk or cylinder on boreholes.

To open 3DViz Tops:
  • 3DViz: Wells > Tops..
  • 3DViz:

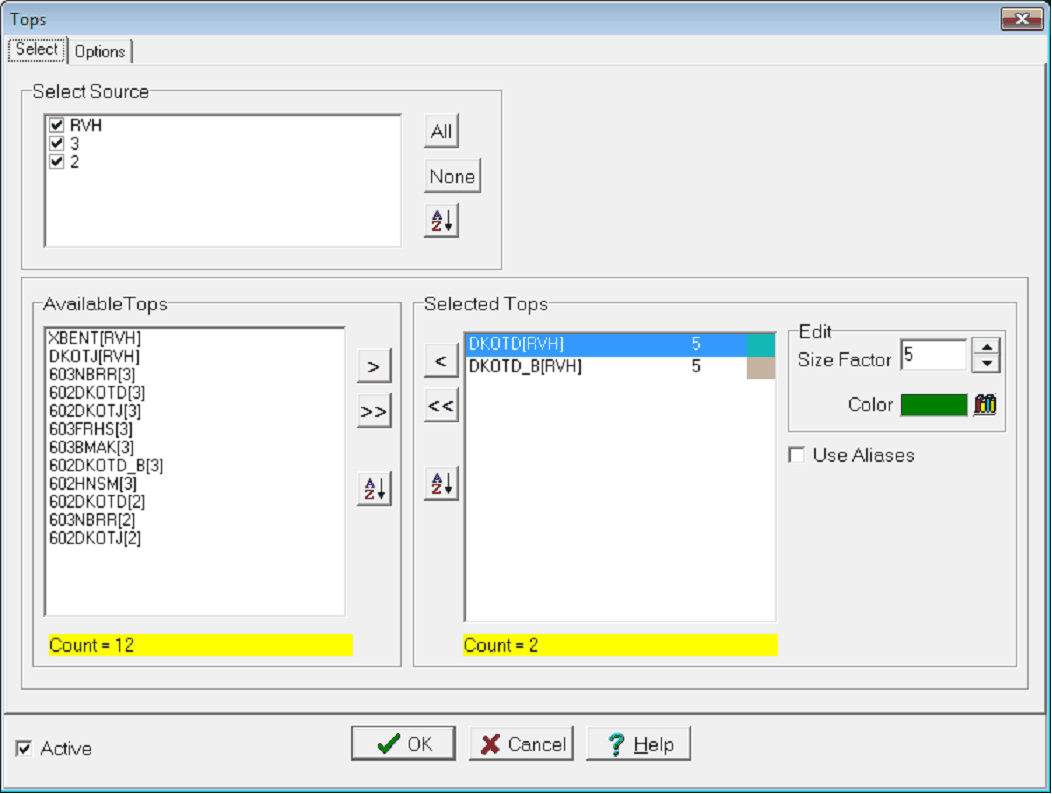

Select tab

The Select tab adds and removes formation tops to the 3DViz Module.

  • Select Source — This section displays the FmTop sources for the project.  The Available Tops list will only display tops for checked sources.  This can be useful for filtering out only the relevant tops from a large, multi-user project.
  • Available Tops — This list displays the FmTops in the project with the selected source(s).  To add a single top, select it on the Available Tops list, and select the ">" button.  To add all the tops on the Available Tops list and select the ">>" button
  • Selected Tops — This list displays the tops added from the Available Tops list.  To drop a top, select the desired top from the Selected Tops list and select the "<" button.  To drop all tops from the 3DViz Module, select the "<<" button.
  • Edit — This section changes the size and color of the selected top on the Selected Tops List.

Options tab

The Options tab sets the fm top display style, and adds a filter to exclude fm tops with a specified quality code.

  • Style — This dropdown selects how formation tops display on the 3DViz Module.  Options include cylinders, discs, and ticks.

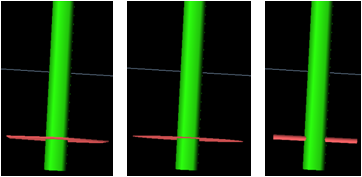

    3D Viz formation tops as cylinders (left), discs (center), and ticks (right)

  • Skip Well if Quality Code contains — This option excludes formation tops with specified quality codes.  This can be useful for excluding questionable, extrapolated, or otherwise lower-quality tops.  To use multiple codes, seperate different codes with a a semi-colon
