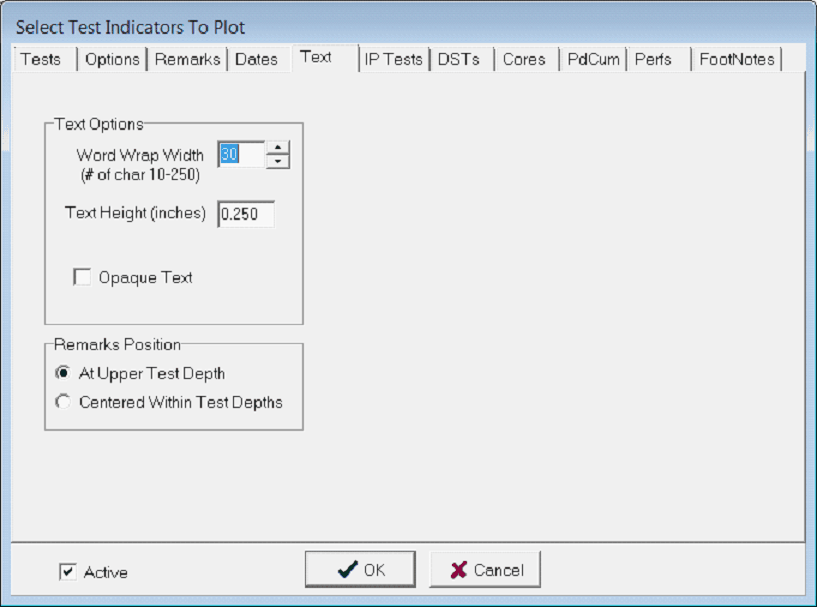

Test Indicators:. Text tab



Word Wrap Width

Sets the number of characters for a single line of a test remarks field.  Petra will wrap the text beyond this number of characters.  For closely-spaced wells, it might be useful to decrease this enry.

Text Height

Sets the height of test text.

Opaque Text

Makes the text and the surrounding text boxes opaque.  This can be useful for making text more visible, but can obscure other features on the cross section.

Remarks position

Sets the location of the remark text.  Text can either start at the top of the test, or centered within the top and base of the test.
