Fm Tops by source

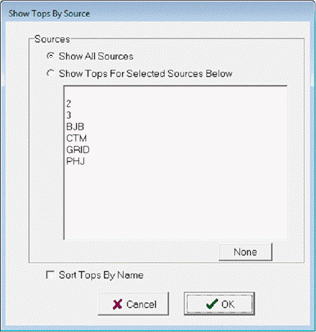

Petra can store a source code for every top.  This source code is typically a user's initials, but can also reflect the origin of the top (such as GRID in the example below for formation tops sampled from a grid rather than correlated by hand.)  Each source code can be up to 32 characters long. By default, all users can modify tops of any source code.

To restrict formation tops based on source code, click the button on the FmTops tab tool bar.

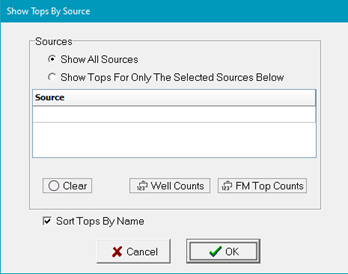

The Show Tops By Source Tool limits how tops are displayed.  Only the tops with the selected source codes display anywhere in Petra.

Show all Sources

This option shows all tops for all sources in the project

Show Tops For Only The Selected Sources Below

Show Tops For Selected Sources Below

Displays selected source codes from the available list in the Map and Cross Section modules. Other modules and tools will continue to display all source codes.

Note: This option is automatically toggled on when one or more source code is selected.

Clear

None

Un-Selects all source codes from the SourceList and toggles on "Show all Sources".

Well Counts

Displays number of wells per selected source in Source List

FM Top Counts

Displays number of tops per selected source in Source List

FmTops Source Code Administrative Options

By default, all users with write access to the database server can modify all tops in the database, regardless of source.  By modifying the "Petra.INI" file, administrators can set the project to only allow users to modify tops with their source code.  When this feature is active, users are prompted for their source code when they start up Petra. It is kept in the registry, so they only need to enter it once.  To implement the top source restriction mechanism, modify Petra.INI with the following lines:

[USERSOURCE]

ENABLED=1

BLANKS=1

ADMINLIST=<comma separated list of user's source codes>



ENABLED

Enables or disables source code restriction.

  • ENABLED=1

  • DISABLED=0

BLANKS

Controls whether users can modify tops with a blank source code.

  • BLANKS=0, all users can modify a top with a blank source code.

  • BLANKS=1, only administrators can modify a top with a blank source code.

ADMINLIST

This line sets up a comma-delimited list of user source codes who have "administrator" rights.
