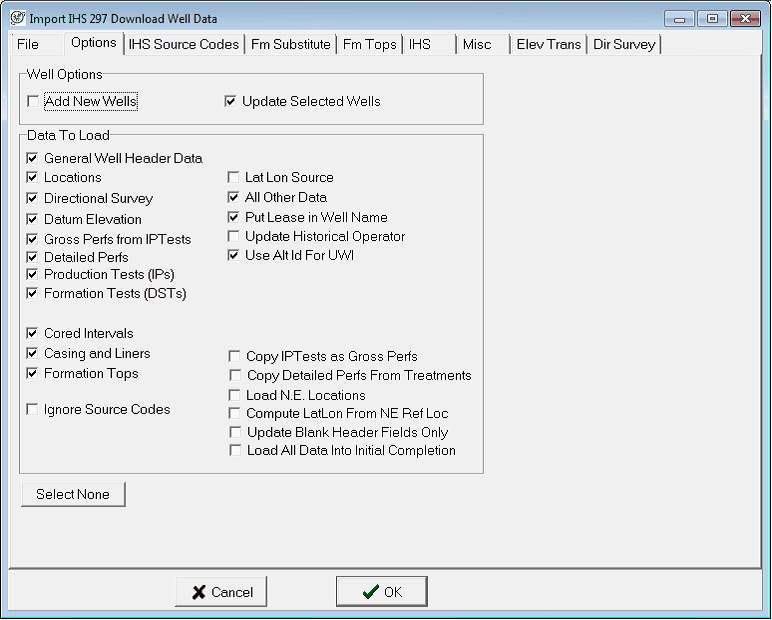

297 options tab



The 297 importer Options tab sets the basic parameters on the data is loaded into the project’s database.

Closed

Well Options

Govern whether the importer adds new wells, or updates selected wells already in the project database.

Data To Load

Set which data is imported.  The available data includes:

• General Well Header Data

• Locations

• Directional Survey

• Datum Elevation

• Gross Perfs from IPTests

• Deptailed Perfs

• Production Tests (IPs)

• Formation Tests (DSTs)

• Cored Intervals

• Formation Tops

• Cored Intervals

Ignore Source Codes

IHS formation tops are coded by their origin: 1 for driller tops, 2 for sample tops, 3 for log tops, and 4 for tops that have been modified by IHS.  As such, the same top name can occur a few different times with different sources.  This option only brings in a single copy of the top – generally the import will bring in the highest source code with the highest quality.

Lat Lon Source

Particularly in Texas, IHS locations sometimes have a source code that reflects the origin of the latitude and longitude.  This option loads location source data into the “Misc Location Information” field on the Main Module’s Location tab.

All Other Data

IHS data has a catch-all field containing a variety of miscellaneous information.  This option loads location source data into the “Misc Location Information” field on the Main Module’s Location tab.

Put Lease in Well Name

Adds the lease name as a suffix to the well name.

Update Historical Operator

Updates operator information.  More specifically, this option copies the operator to a null historical operator entry whenever the operator changes.

Use Alt ID for UWI

IHS generates AltIDs for wells without a UWI number.  This option tells Petra to use the AltID when the regular UWI is missing, and is on by default.  Deselecting this option will prevent Petra from loading wells without UWIs into the project.

Copy IPTests as Gross Perfs

Copies the top and base of IP tests as a perf interval.  This can create very large “gross” perf intervals in the imported wells.

Copy Detailed Perfs From Treatments

Copies the top and base of each treatment as a perf interval.  This can create a large number of small perfed intervals in the well.

Load N.E. Locations

Loads the NorthEast locations.  This data is available on the “US N.E. Loc” button on the Main Module’s Location tab.

Compute LatLon from NE Ref Loc

Uses the NorthEast location to recalculate the well’s LatLon.

Update Blank Header Fields Only

Importing a 297 file overwrites all header fields.  This option only imports data from the file into blank header fields.

Load All Data into Initial Completion

Loads information from multiple completions (normally separated by the last couple digits of a 14 digit API number) into the single primary completion.
