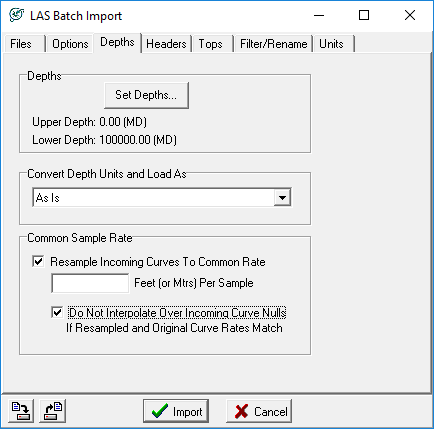

Set Depths
|
Sets the upper and lower limit of the imported log data. Log data outside this range wont be imported into the Petra project. The depth interval can be specified in measured depth, TVD, or relative to formation tops.
|
|
Convert Depth Units and Load As
|
Imports the curves in a different depth interval. As Is leaves the MD values as is and does not convert any depths. The Feet Option converts log curves measured in meters to feet. The meters option converts log curves measured in feet to meters.
|
|
Resample Incoming Curves to Common Rate
|
Re-samples incoming curves to a single common sample rate. As an example, with a sample rate of 1, Petra will re-sample the curve data to 1 foot/meter intervals.
|
