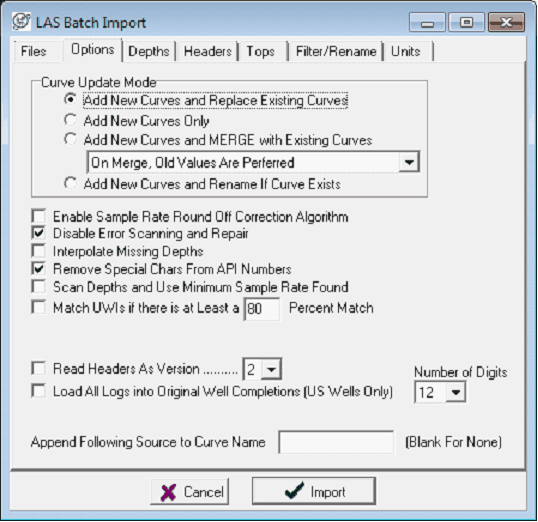

Curve Update Mode
|
These options control how Petra handles naming overlaps between curves already in the project database and the LAS files. The Add New Curves and Replace Existing Curves option allows for the creation of new logs and will completely replace any overlapping curves in the database with the LAS file data. Add New Logs Only only creates new logs; when theres an overlap between the database and the LAS file, the database wont change. Add New Curves and Merge into Existing Logs allows for the creation of new logs, and will merge data from the LAS file with the curves already in the database. This merge operation can either prefer old values, non-null new values, or all new values. Add or Rename allows for the creation of new logs, and will rename overlapping curve names with a numerical suffix (like GR_1). For this example, select Add or Replace Logs.
|
|
Enable Sample Rate Round Off Correction Algorithm
|
This option corrects for depth round off errors caused by a non-standard sample rates (such as 0.1524), which are usually a consequence of converting logs measured in one depth unit into a different depth unit.
|
|
Disable Error Scanning and Repair
|
By default, Petra scans for potential bad characters in the curve data and looks for data that is not space delimited. These conditions are not corrected if this option is checked.
|
|
Interpolate Missing Depths
|
Interpolates values over missing intervals in the LAS file. This interpolation simply repeats the last good value.
|
|
Remove Special Characters From API Number
|
This option removes any nonnumeric characters from the API number in the LAS file. Embedded blanks are converted to underscores prior to matching wells in the database.
|
|
Scan Depths and Use Minimum Sample Rate Found
|
Scans the depths and determines the minimum sample rate.
|
|
Match UWIs if there is at Least a XX Percent Match
|
Since this tool can bring a large number of LAS files at once, this tool allows some flexibility in matching UWI/API numbers from the LAS files to those in the project. By default, Petra looks for an 80% match between the LAS UWI/API and the project wells UWI/API.
|
|
Read Headers as Version
|
Sets the version number for the LAS files. For reference, LAS version 1.2 was introduced in 1990, and LAS version 2.0 was introduced in 2009. When in doubt, an individual LAS files version is listed at the beginning of every file.
|
|
Load all Logs into Original Well Completions
|
By default, Petra loads the curve names into the well that matches the LAS files API/UWI number. This option instead loads the curves into the primary completion.
|
|
Append Following Source To Curve Name
|
Appends text to the end of the loaded curves names.
|
