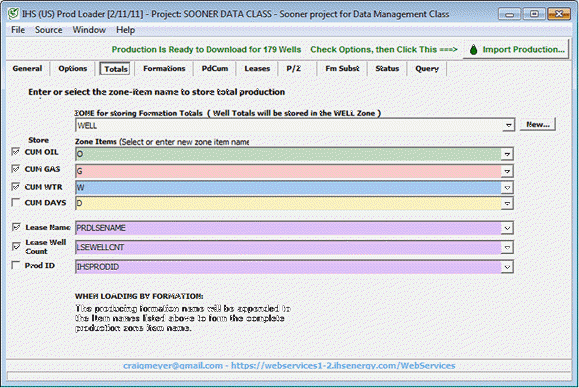

Totals tab



The Totals tab stores information from the production data to zone data items.  Each data item is a fluid type prefix and the formation name.  As an example, the Oil from the Dakota D is stored as “O_602DKOTD” by default.

Zone for storing Totals

Selects the zone that will contain the cumulative production data items

CUM OIL

Sets the prefix for cumulative oil values.  By default it is “O.”

CUM GAS

Sets the prefix for cumulative gas values.  By default it is “G.”

CUM WTR

Sets the prefix for cumulative gas values.  By default it is “W.”

Lease Name

Sets the zone data item for storing the lease name.

Lease Well Count

Sets the zone data item for storing the lease well count.

Prod ID

Sets the zone data item for storing the production ID.
