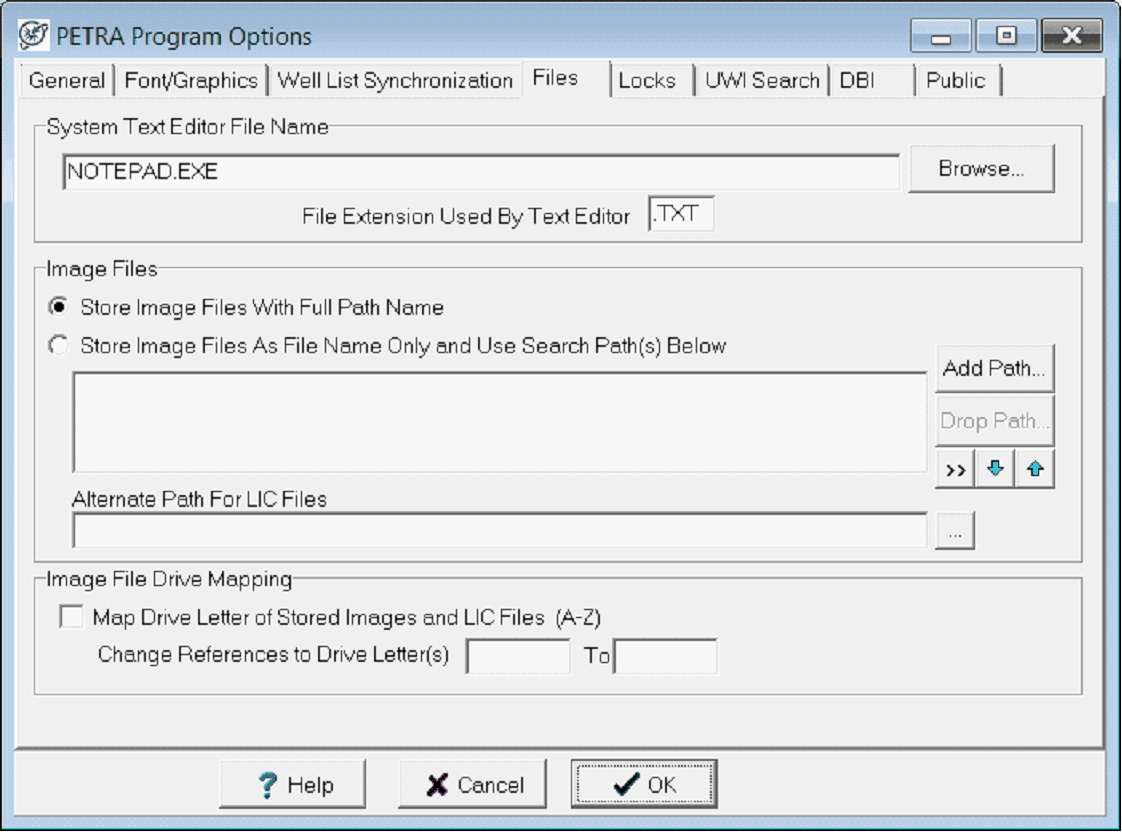

System Text Editor Name
|
Sets the executable file name of the text editor used by Petra to view or edit various text files and reports. Typical choices here are Notepad.EXE or Write.EXE.
|
|
Image Files
|
When the "Store Image Files With Full Path Name" option is selected, Petra stores a full path and along with the image name. In contrast, when the "Store Image Files As File Name Only and Use Search Path(s) Below" option is selected, Petra will store only the file name in the database and resolve the full name using the search path. The advantage to using a search path is that projects may be moved to a different drive and still find the images.
|
|
Alternate Path For LIC Files
|
When the "Store Image Files As File Name Only and Use Search Path(s) Below" option is selected, Petra will automatically look for LIC files in this same directory. This entry sets an alternate path for LIC files.
|
|
Image File Drive Mapping
|
This option performs completely replaces image location drive letters. This can be useful when moving a project to a different network or when standardizing drive mapping between two different workstations.
|
