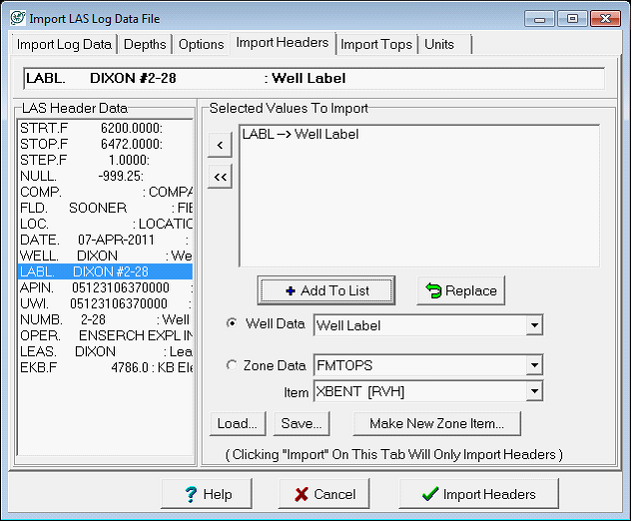

Import Headers tab



The Import Headers tab imports header information into the project zone data items.

LAS Header Data

Available Header data to Import.

Selected Values To Import

List of values selected to be imported.

+ Add To List

Adds selected header data values to import list.

Replace

Replaces selected value

Well Data

Enables Well Data item drop down list to select well value to import

Zone Data

Enables Zone Data item drop down list to select zone value to import

Load

Loads saved LAS Header template (*.FM8)

Save

Saves selected values to import list as LAS Header template (*.FM8)

Make New Zone Item

Opens new data item dialog

Import Headers

Imports selected values into project
