Axes Properties

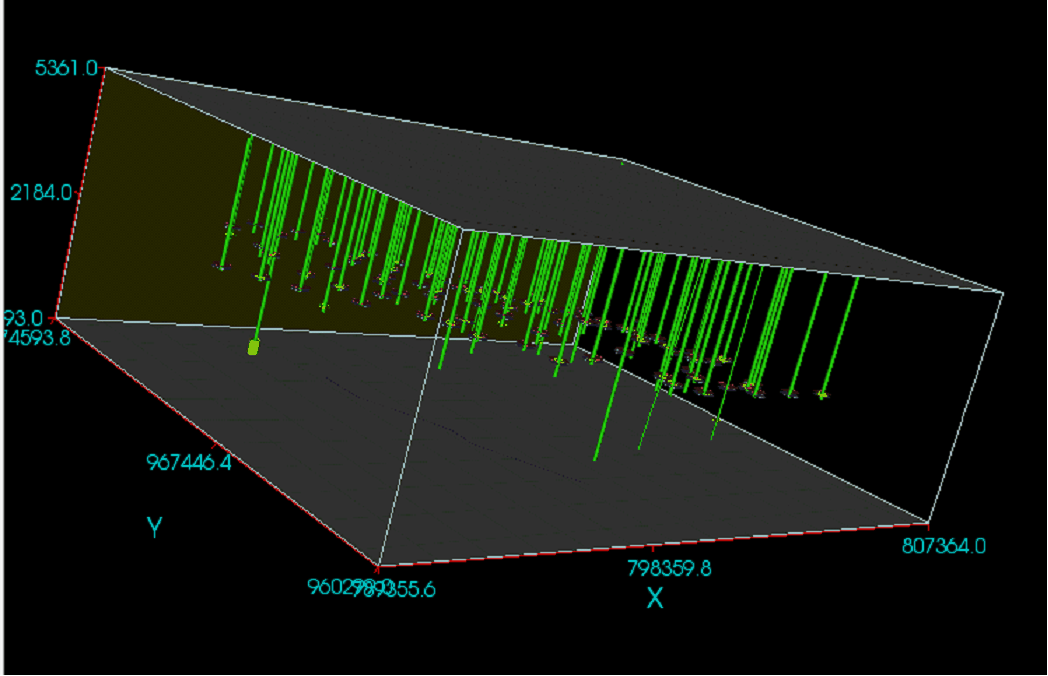

The Axes Property tool adds labels to the X, Y, and Z axis.

To modify the axis properties:
  • 3D Visualization: Axes > Display > Axis
  • CTRL X

X/Y/Z Axis Visible

These check boxes control which of axes labels appear on the module.  Deselected axes do not display.

Color

Sets the colors of the axes labels.

Corner Offset

Determines the distance the axis line is from the cube corner.  Zero is on the corner.

Size Factor

Sets the size factor of the axes labels.  1 is the default text size, while 2 will double the text size.

X/Y/Z Axis Title

Sets the text plotted along the relevant axis.

Ticks and Labels

Number of Intervals

Sets the number of labeled points along each axis.  The lowest number, 2, labels only the furthest extents of the axis and the center.  Increasing this number adds more labels along the axis.
