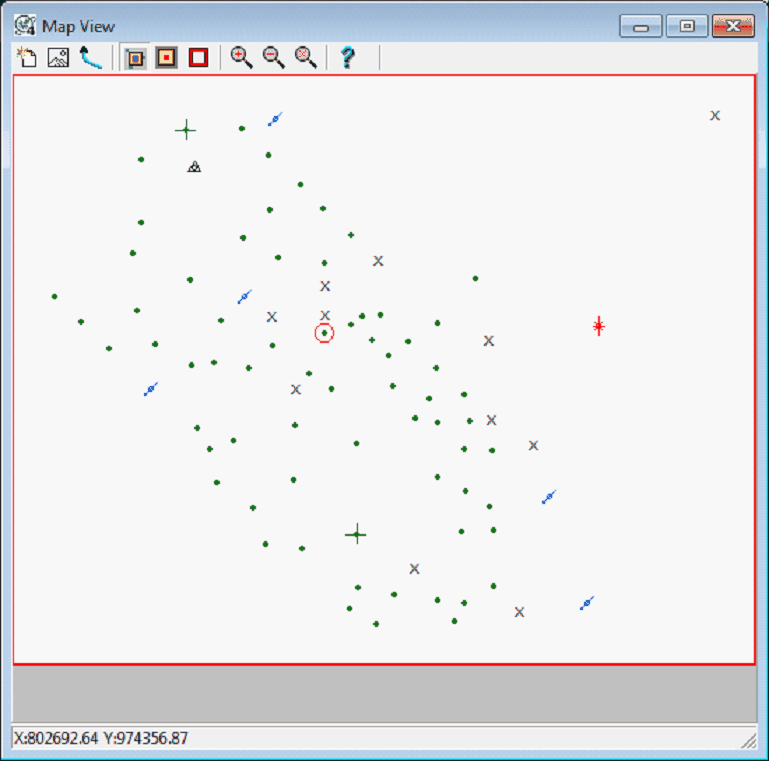

Map View

The Map View displays an aerial view of the area selected in the 3DViz Module. This tool can select wells and highlight wells, and change the limits on the 3DVIz Module.

To open the Map View:

Select the button on the menu bar at the top of the screen
Select View > Map View from the 3DViz Module menu bar.

	Resets the limits on the Map View to the current limits selected on the 3DViz Module.
	Refreshes the Map Module to reflect the most current data in the project.
	Enables or disables wellbores on the Map View table.
	Zoom in and out of the Map View. Note that this also resets the red lines on the Map View.

Selecting and Highlighting Wells

To select a well, simply click it on its location in the Map View. Doubleclicking a single well will take you directly to it in the Main Module. To select multiple wells, hold down the CTRL key and select multiple wells.

	Highlights selected wells on the 3DViz Module. This effectively dims all other wells displayed in the project. To disable highlighting, doubleclick anywhere inside the frame
	Limits the 3dViz Module to only the wells selected on the Map View Tool.
	Limits the 3DViz Module to the extents defined by the red rectangle.

Changing the Area

The Map View tool can change the extents on the 3DVIz Module. The red lines on the edges of the map display the 3DViz Module's current extents. Selecting and dragging the lines to the desired location changes the limits on the module.
