Well Symbol Style - Cross Section


Cross Section: Wells > Symbol Location and Style

The well location style screen provides options for setting the well symbol size and well labeling style. The well label is a single line of text and can be used as an alternative to using the Posted Data option.

Symbol tab

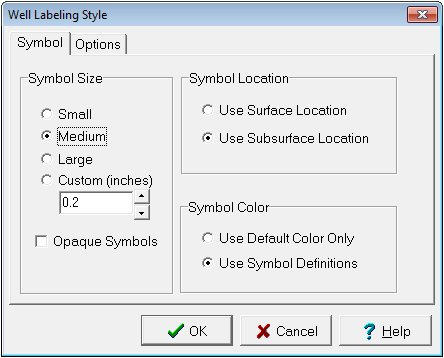

clip0265

The Well Labeling Style's Symbol tab

Symbol Size

Selects symbol sizes

Opaque Symbols

Fills well symbol with the background color

Symbol Location

Sets the location of symbol

Symbol Color

Selects well symbol color :

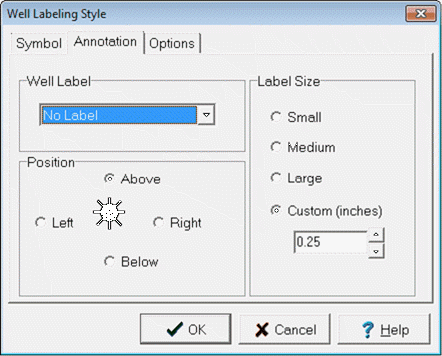

Annotation tab

The Annotation tab becomes available when the "Allow Simple Well Labeling" option on the Options tab is selected. The Annotation tab provides a simple alternative to the Data Posted By Well Spot tool.

Well Label

This dropdown sets the label around the well symbol.  Options include:

  • No Label (Suppress the well label)
  • Unique Well Id (UWI or Api Number)
  • Api Series No. (5-digit series number or the UWI)
  • Well Short Name
  • Well Label
  • Well Seq No. (WSN)

Position

This option sets the label position above, below, left or right of the well symbol.

Label Size

Select the one of the default symbol sizes, small, medium or large or select the Custom button and enter the symbol size in inches.

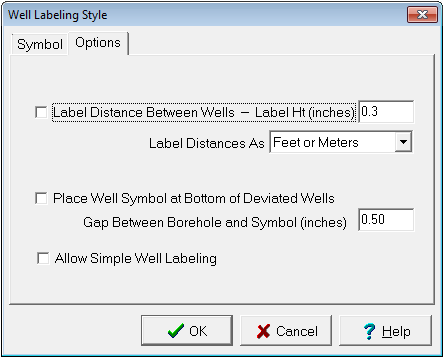

Options tab

The Options tab sets a few additional options for well labeling.

Label Distance Between Wells

Posts the distance between each well symbol at the top of the cross section.  The entry to the right sets the height of the text. The "Label Distances As" dropdown sets the label in feet or meters.

Place Well Symbol at Bottom of Deviated Wells

Posts the well symbol at the bottom of deviated wells instead of at the top of the cross section.

Allow Simple Well Labeling

Creates the Annotation tab.
