Location tab

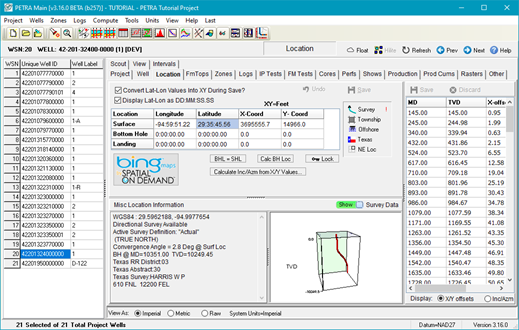

The location tab on the main module displays and controls:

MainLocTab

	Undoes the last change to the well when displayed
Data grid	Displays selected well's latitude, longitudes, and XY coordinates in table format for: Surface location Bottom hole location Landing
Additional location parameters	Directional survey data Congressional location information Offshore location information Texas location information Northeast location information
	Opens wells location in bing maps
	Overwrites bottom hole location (BHL) with the surface hole location(SHL)
	For directional wells, uses survey data to calculate the bottom hole (BH) location
	Locks currently selected well's location. Locked well locations cannot be changed either manually or by data imports. Note: Project-wide location locking is enabled or disabled from the Program Options tool's Locks tab.
Directional survey table	Provides: Option to display values for MD and calculated TVD for X/Yoffsets or Inclination/Azimuth Insert/Append/Delete survey data directly from Excel using right-click context menu. Movable TVD column using drag and drop method. When TVD column is moved placement will persist until moved again.
Show Survey Data	Optional 3D view of directional survey
