IP/FM Test Dates tab

The Items tab sets the specific entries on the Map Module.

To open the IP Tests tool, select Options>Post IP Tests.

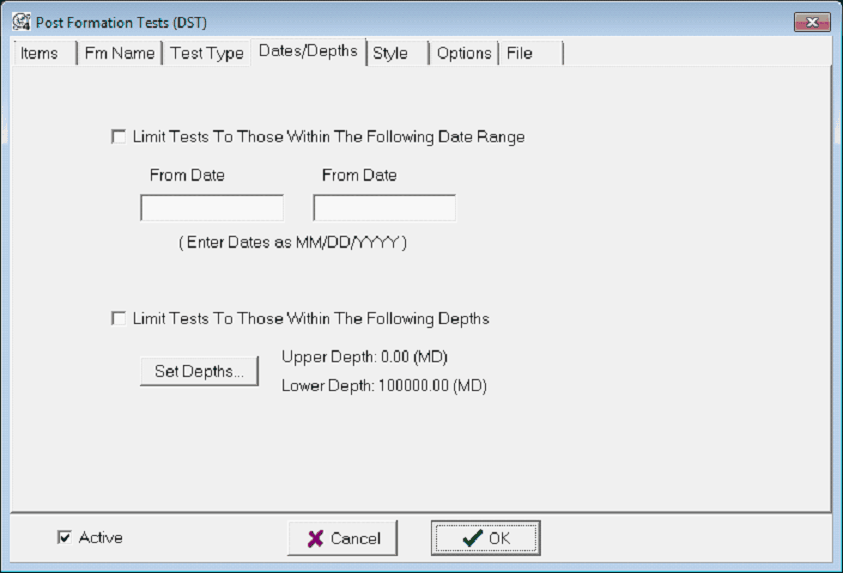

To open the Post Formation Tests tool, select Options>Post DSTs.

Limit Tests to Those Within The Following Date Range - This option enables a date restriction for the tests plotted on the Map Module.  Tests not inside this range will not plot on the Map Module.

From/To Date - These two entry boxes set the start and end dates in MM/DD/YYYY.

Limit Wells to Those Within the Following Depths (DST Only) - This option enables a depth restriction to the DSTs plotted.  Only DSTS within a specified depth range will plot on the Map Module.

Set Depths (DST Only) - This opens the Set Depth Range tool that limits the tests to those within a depth range set by formation tops, a constant depth range (in MD, TVD), or a zone's interval definition.
