Select Slip Log Raster Images

Each well in the display has associated with it one raster log group. The first time a well is chosen for display, you will be prompted to select the log from a list of available logs for that well. The selected log reference is retained and used whenever the well is chosen for display. You can change the log reference for a given well at any time.

Setting an initial Slip Log Image

The Slip Log Tool will select images sequentially for the wells selected.  This log reference will be retained and used whenever the well is displayed, but can be changed at any time.

Changing a Slip Log Image

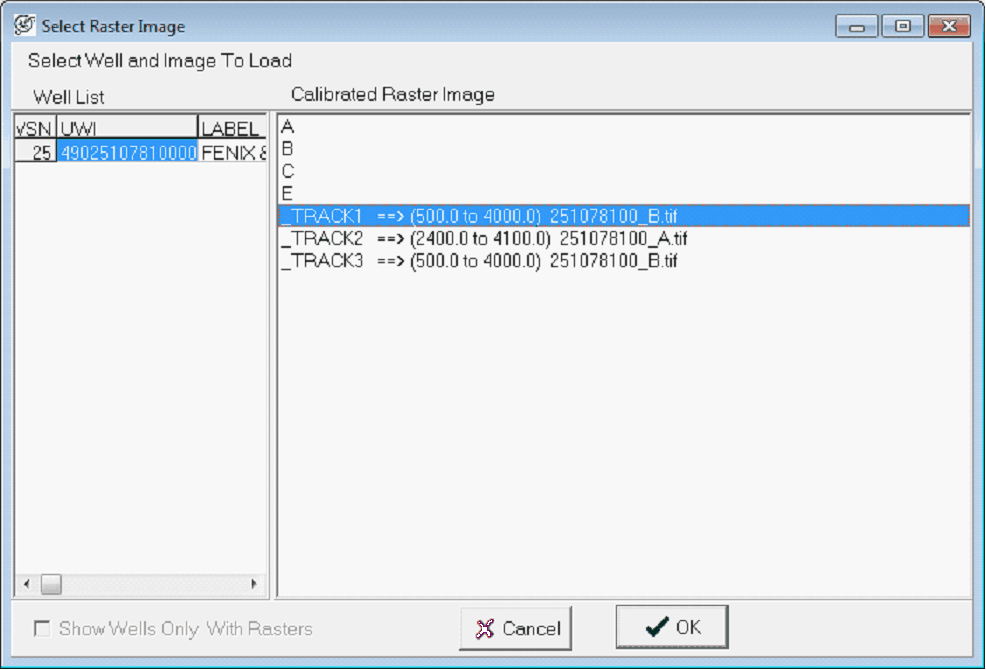

To change a well's slip log image, select the button above and select Select Different Image for This well.  This reopens the "Select Raster Image" tool.
