Point Events |
Top Previous Next |
|
Point events are a special kind of event that reflect a point or depth along the well. To create a point event, select the Data tab

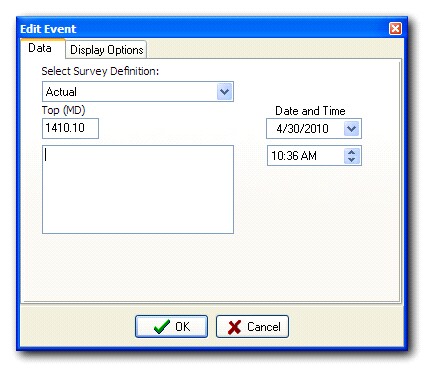

Select Survey Definition - Petra can handle multiple sets of directional surveys. This dropdown sets which set of surveys the point event will be associated with. Top - This entry sets the depth of the point event. Text Box - This box sets the text that will be displayed in the event. Date and Time - These two entries set the date and time of the event. By default, this is set to the time the event is created. It's probably a good idea to change these to reflect the date and time of the drilling event. Display Options tab

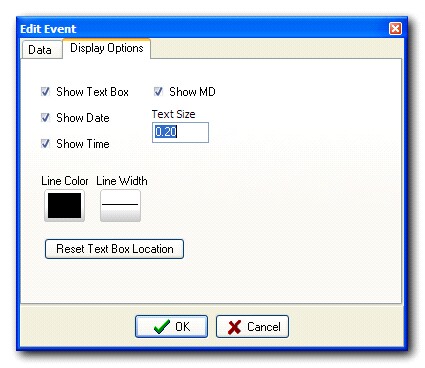

Show Text Box - This entry enables or disables the point event's text box. Show Date - This option displays the date (set on the Data tab) on the point event. Show Time - This option displays the time (set on the Data tab) on the point event. Show MD - This option displays the MD (set on the "Top" entry on the Data tab) of the point event. Text Size - This option sets the size of the text on the point event label in inches.
Line Color - This entry sets the line color of the border around the point event text box. Line Width - This entry sets the line color of the border around the point event text box. Reset Text Box Location - If the text box is not visible at your current zoom level, click this button to reset its location. |
button on the events toolbar. Next, click on the well at the depth where you would like to place your event. After setting the location, the Edit Event tool will open:
